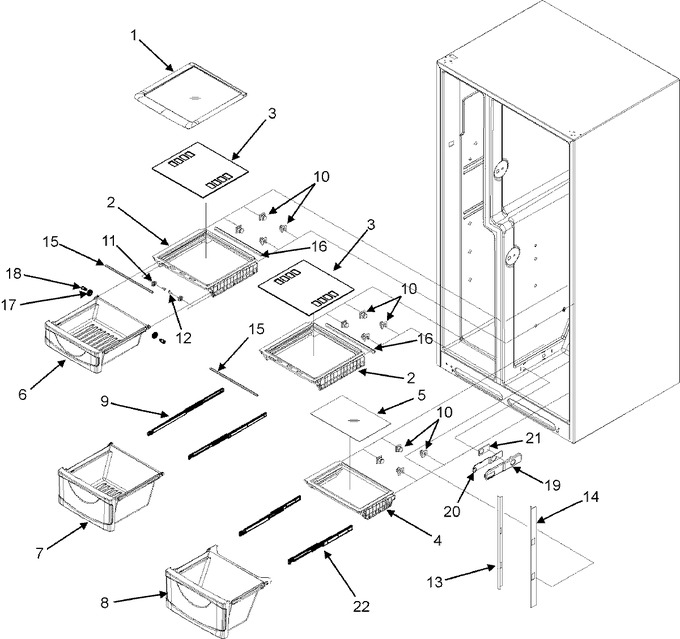

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004162		Shelf, Crisper Topx	10	Appelez-nous	-
2	67004576		Frame, Crisper Shelf	10	Appelez-nous	-
3	67004577		Barrier, Crisper Shelf	10	Appelez-nous	-
4	67004163		Frame, Meat Shelf	10	Appelez-nous	-
5	67004164		Glass, Meat Shelf	10	Appelez-nous	-
6	67004578		Pan Assy., Sm Crisper	10	Appelez-nous	-
7	67004579		Pan, Lg Crisper	10	Appelez-nous	-
7	67005812		Pan, Lg Crisper	11	Appelez-nous	-
8	67005814		Pan, Meat	11	Appelez-nous	-
8	67004580		Pan, Meat	10	Appelez-nous	-
9	M0213129		Screw	10	Appelez-nous	-
9	67004489		Glide, Crisper Frame	10	Appelez-nous	-
9	67005620		Glide, Crisp Frame (w/bumper)	11			$ 321.73
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
11	67004169		Roller, Crisper	10			$ 5.81
12	67006692		Screw, Shoulder   (Replaces: M0238105)	10			$ 10.79
13	67004170		Pillar (lt)	10	Appelez-nous	-
14	67004171		Pillar (rt)	10	Appelez-nous	-
15	67004172		Seal, Crisper Frame (frt)	10	Appelez-nous	-
16	67004173		Seal, Crisper Frame (rear)	10	Appelez-nous	-
17	67004133		Roller, Pan	10	Appelez-nous	-
18	67004174		Pin, Roller	10			$ 6.11
19	67004175		Housing, Temp. Control	10	Appelez-nous	-
20	67004176		Slide, Temp. Control	10	Appelez-nous	-
21	67004177		Gasket, Temp. Control	10	Appelez-nous	-
22	M0213129		Screw	10	Appelez-nous	-
22	67005898		Glide, Meat Frame (w/bumper)	11			$ 39.39
22	67005620		Glide, Meat Frame   (Replaces: 67004488)	10			$ 321.73
