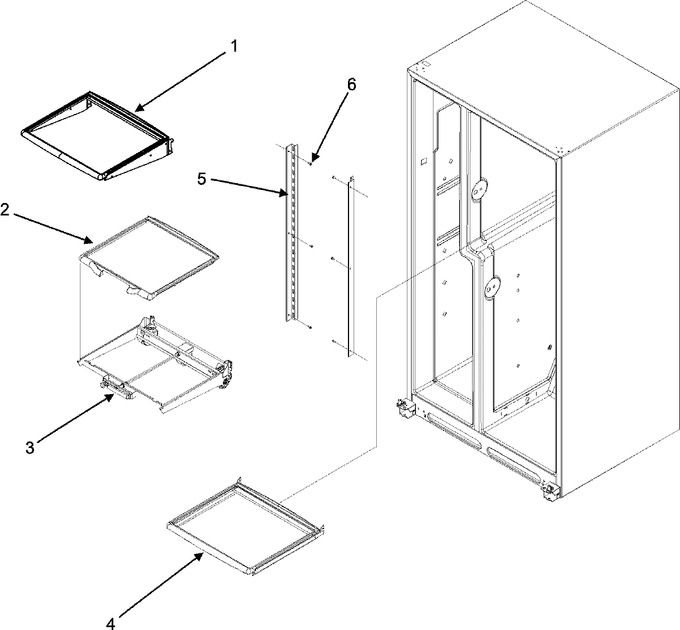

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003887		Shelf, Glide Out	10	Appelez-nous	-
2	67004159		Shelf, Elevator	10	Appelez-nous	-
3	67004160		Frame Assy., Elevator Shelf	10	Appelez-nous	-
4	67004161		Shelf, Ledge Glide	10	Appelez-nous	-
5	67004198		Ladder, Side	10	Appelez-nous	-
6	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
