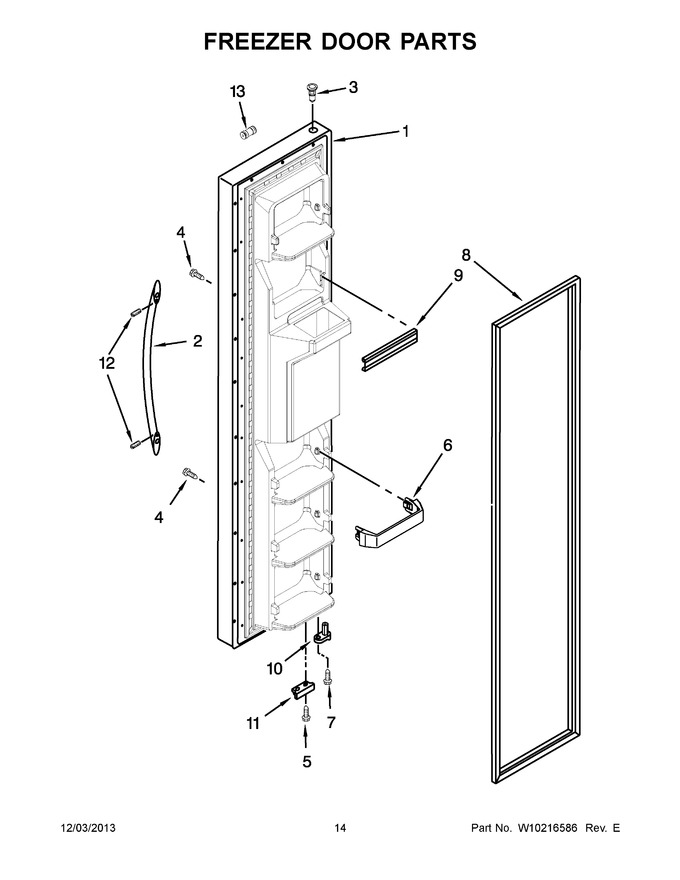

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327133W		Door, Freezer (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2327133T		Door, Freezer (includes Item No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2327133B		Door, Freezer (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327016S		Door, Freezer (includes Item No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	2327016SA		Door, Freezer (includes Item No.8 And Dispenser Front Parts) (monochromatic)		Appelez-nous	-
2	2319727W		Handle (includes Item No.4) (white)				$ 106.80
2	2319727T		Handle (includes Item No.4) (biscuit)		Appelez-nous	-
2	2319727B		Handle (includes Item No.4) (black)				$ 109.87
2	2319727S		Handle (includes Item No.4) (stainless)				$ 133.96
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
4	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
5	WP489483		Screw   (Replaces: 489420)				$ 10.87
6	WP2156021		Trivet   (Replaces: 2156021)				$ 63.27
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	W10136733		Gasket, Door (grey)   (Replaces: 2327162)				$ 341.89
8	2159080		Gasket, Door (black)   (Replaces: 2309654)				$ 310.39
8	2159072		Gasket, Door (beige)   (Replaces: 2309604)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
11	2323534		Bracket, Door Stop (silver)		Appelez-nous	-
12	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
12	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
13	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 21.59

    View Diagram in Separate Window       Print Part List
