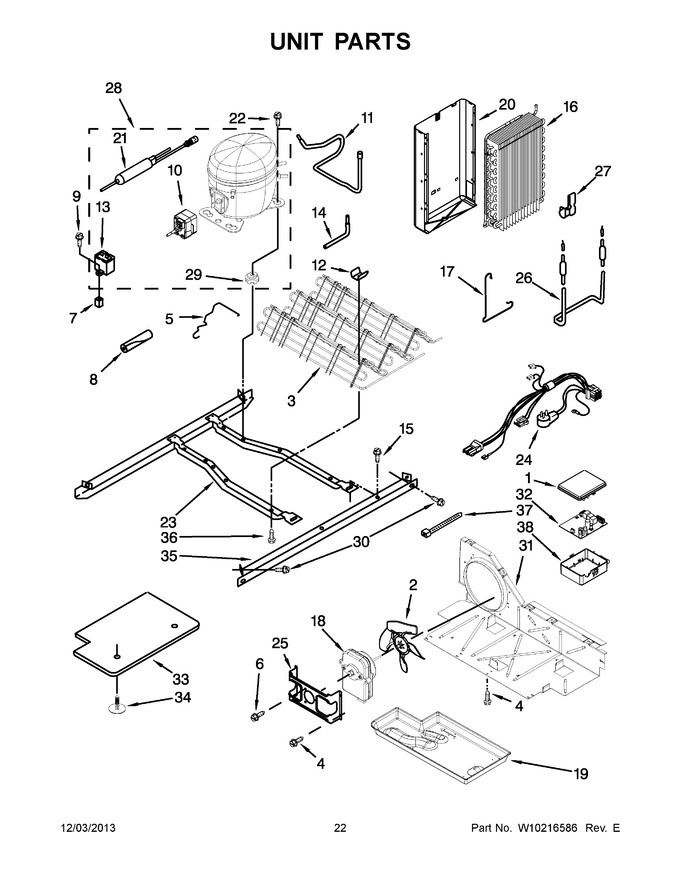

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255624		Cover, Control		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Assembly, Condenser				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2255199		Strap, Bale		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	509812		Grommet, Screw		Appelez-nous	-
8	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 20.30
9	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
10	WPW10197426		Device, Start (combination Relay And Overload)   (Replaces: W10136414)				$ 154.34
11	2205764		Tube Suction				$ 84.93
12	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
13	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
14	2325479		Tube, Process		Appelez-nous	-
15	WP489427		Screw   (Replaces: 489427)				$ 7.47
16	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
19	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
20	WPW10194474		Assembly, Heat Shield And Drain Pan   (Replaces: W10194474)				$ 119.53
21	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
22	876811		Screw   (Replaces: 489373)				$ 7.42
23	2304903		Frame, Unit Mounting				$ 233.03
24	2310425		Assembly, Unit Wire				$ 219.95
25	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
26	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
27	2161324		Clip, Defrost Heater		Appelez-nous	-
28	W10309988		Compressor (also Order 876765 Tube Kit)   (Replaces: W10145247)			Immediately	$ 559.32
29	876811		Grommet   (Replaces: 1100826)				$ 7.42
30	489340		Bolt		Appelez-nous	-
31	W10332806		Baffle, Air				$ 102.82
32	W10259855		Control, Electronic				$ 350.35
33	W11115203		Cover, Unit (bottom)   (Replaces: 2304898)				$ 517.91
34	489396		Clip				$ 10.72
35	W10207512		Rail, Unit Mounting		Appelez-nous	-
36	W11544659		Screw   (Replaces: 8281232)				$ 13.67
37	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.90
38	2326982		Box, Control				$ 86.07
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access			Immediately	$ 128.09
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
