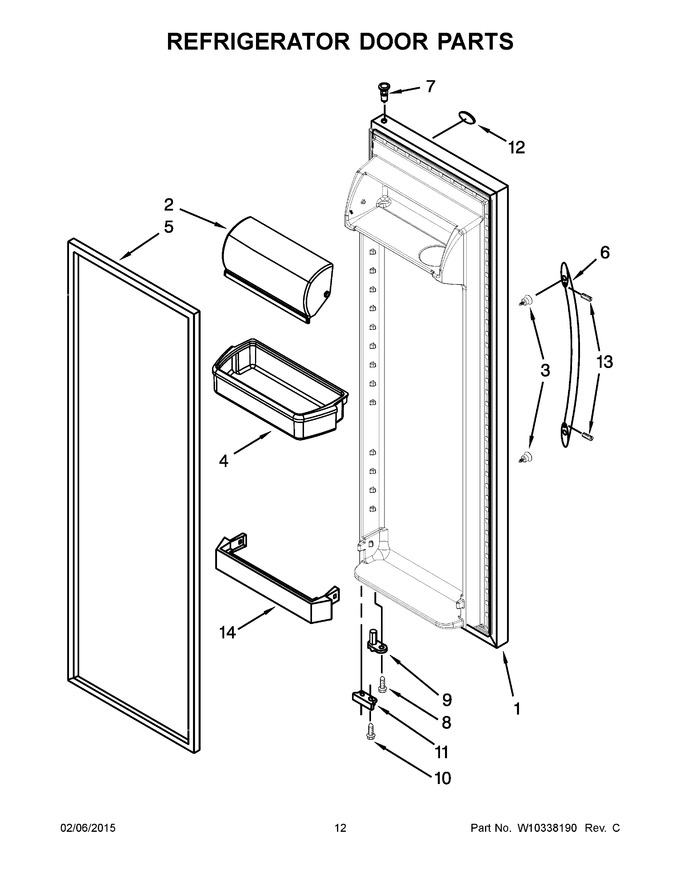

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10272000		Door, Refrigerator (includes Item 5) (stainless)		Appelez-nous	-
2	2301486		Assembly, Compartment Door		Appelez-nous	-
3	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
4	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.95
5	2159081		Gasket, Door (black)   (Replaces: 2309653)				$ 335.58
6	2319727S		Handle, Door (stainless)				$ 133.96
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 7.20
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	W10185570		Bracket, Door Stop (silver)				$ 11.59
12	WPW10243391		Nameplate (grey)   (Replaces: W10243391)				$ 58.31
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 18.43
14	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
11A	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
1A	W10272003		Door, Refrigerator (includes Item 5) (monochromatic Stainless)		Appelez-nous	-
5A	W10136732		Gasket, Door (grey)   (Replaces: 2327161)			Immediately	$ 361.20

    View Diagram in Separate Window       Print Part List
