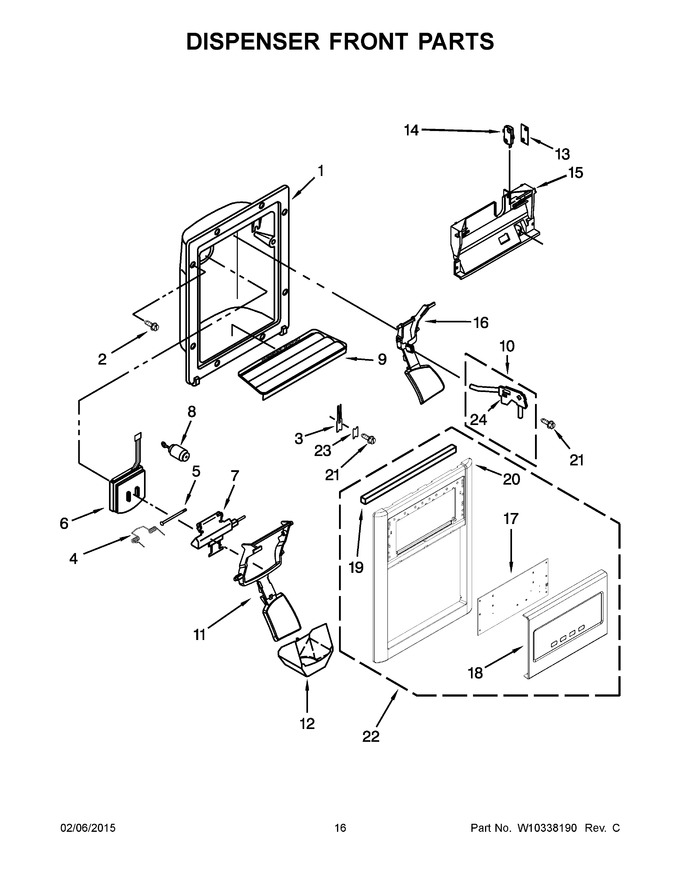

09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Ice Maker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Spring, Lever   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Support, Ice Door		Appelez-nous	-
8	2205686		Dashpot, Dispenser		Appelez-nous	-
9	WP2206671B		Grille, Overflow (black)   (Replaces: 2206671B)				$ 72.50
10	8201537		Assembly, Water Fitting (includes Water Tube)   (Replaces: 2304317)				$ 140.84
11	WPW10152854		Lever, Ice Dispenser (black)   (Replaces: W10152854)				$ 109.00
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	625834		Spacer, Holding Switch				$ 7.99
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 28.71
15	W10206103		Bracket, Control		Appelez-nous	-
16	WPW10152859		Lever, Water Dispenser (black)   (Replaces: W10152859)			Immediately	$ 102.82
17	2321704		Control, Electronic				$ 224.49
18	N/P		Overlay, Front Cover (not Available Order #22)		Appelez-nous	-
19	2305571		Gasket, Front Cover				$ 27.44
20	N/P		Front Cover, Housing (not Available, Order #22)		Appelez-nous	-
21	WP3400906		Screw   (Replaces: 489000)				$ 9.05
22	W10159780		Assembly, Bezel (nickel)		Appelez-nous	-
23	WP2195051		Relief, Strain   (Replaces: 2195051)				$ 12.54
24	WP2304673		Bracket, Water Tube   (Replaces: 2304673)				$ 16.38
11A	W10155161		Lever, Ice Dispenser (grey)				$ 104.72
16A	W10155162		Lever, Water Dispenser (grey)				$ 68.97
9A	W10171992		Grille, Overflow (nickel)				$ 93.12
