Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2313299B Refrigerator Door (includes 7) (black) Appelez-nous -
1 2301184S Refrigerator Door (includes 7) (stainless Steel) Appelez-nous -
1 2301184SAP Refrigerator Door (includes 7) (monochromatic Satina) Appelez-nous -
1 2313299W Refrigerator Door (includes 7) (white) Appelez-nous -
2 2301486 Door, Compartment Appelez-nous -
3 2193409K Beverage Holder (2) Appelez-nous -
4 2319727B Handle (black) Special Order $ 109.87

4 2319727S Handle (stainless Steel) Special Order $ 133.96

4 2319727W Handle (white) Special Order $ 106.80

5 2159083 Door Gasket, Magnetic (black)   (Replaces: 2221313) Special Order $ 251.49

5 2159075 Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302) In-Stock Immediately $ 333.00

6 WPW10170540 Stud   (Replaces: 2219698) In-Stock Immediately $ 8.51

7 W11366418 Set Screw (chrome)   (Replaces: W10010140) In-Stock Immediately $ 15.79

7 WPW10010150 Set Screw (black)   (Replaces: W10010150) Special Order $ 8.57

8 W10046610 Nameplate (gray) Special Order $ 33.40

8 WPW10243392 Nameplate (black)   (Replaces: W10046640) Special Order $ 73.70

8 WPW10243393 Nameplate (white)   (Replaces: W10046670) Special Order $ 69.98

9 WP488163 Screw   (Replaces: 488208) Special Order $ 7.92

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 2159124 Gasket Appelez-nous -
12 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

13 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 42.79

13 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 42.79

14 WP2223434K Door Bin (4)   (Replaces: 2223434K) In-Stock Immediately $ 102.08

15 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

16 2308050 Thimble-top (for Stainless) Appelez-nous -
16 WP2182181 Thimble, Top (for White & Black Models)   (Replaces: 2308091) Special Order $ 8.15


    View Diagram in Separate Window     Print Icon   Print Part List

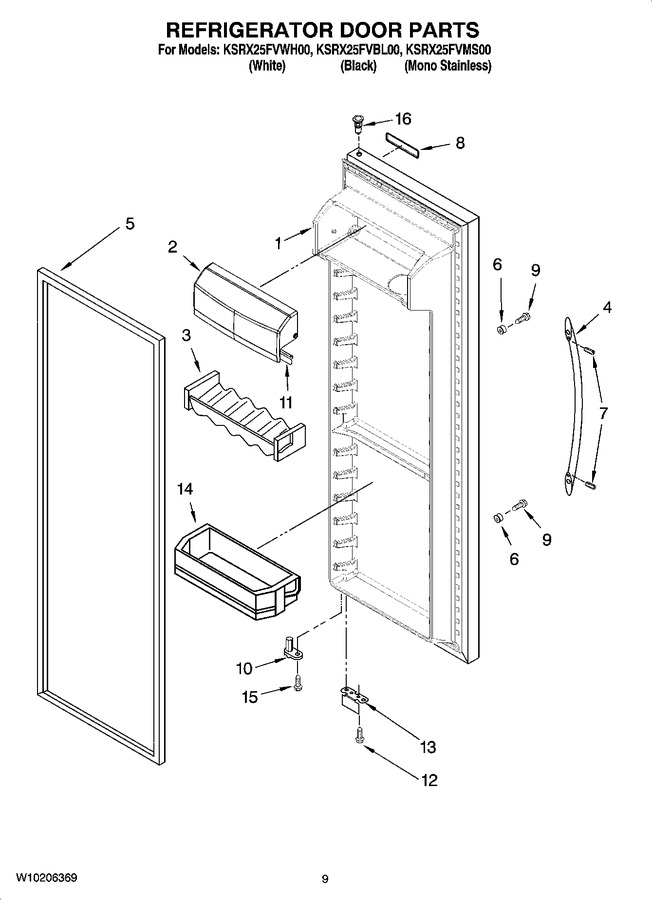

Diagram for KSRX25FVMS00
