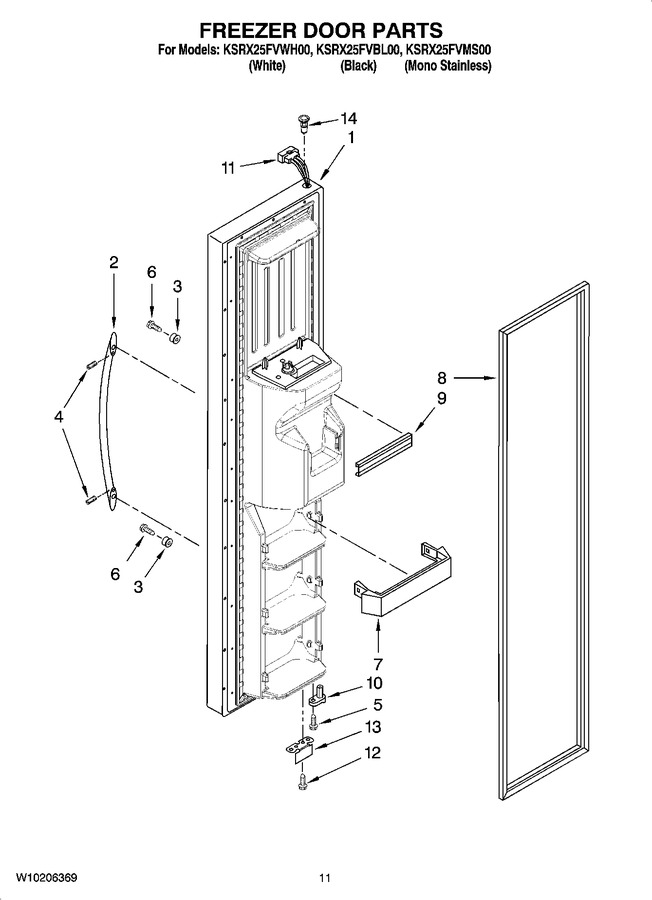

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149993		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149994		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10166663		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10149996		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Satina)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
4	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
4	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP488163		Screw   (Replaces: 488208)				$ 7.54
7	2223559K		Shelf Bin (3)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
10	2323535		Door Closer, Upper Cam				$ 33.97
11	W10167532		Wire Assy, Door		Appelez-nous	-
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
13	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2301049		Thimble-top (for Stainless)				$ 75.42
14	2323581		Thimble-top (for White, & Black Models)		Appelez-nous	-
