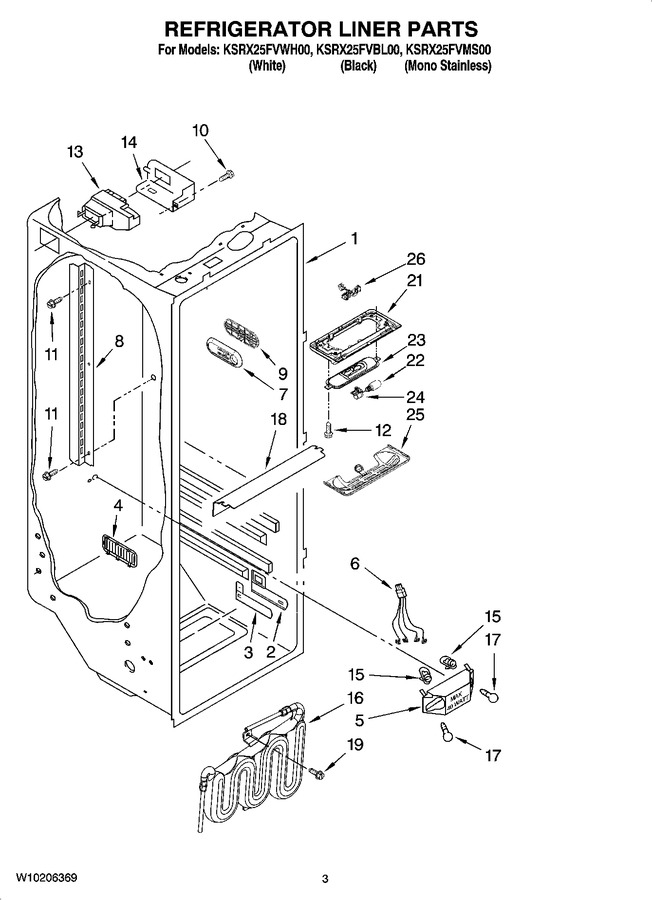

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10175967 | Escutcheon, Meat Pan Control |
|
$ 77.20 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2257741 | Louver |
|
- | |||||
| 5 | 2256035 | Bracket, Dual Crisper Lights |
|
$ 62.54 | |||||
| 6 | 2311637 | Wire Harness, Dual Crisper Lights |
|
$ 147.24 | |||||
| 7 | 2301234 | Housing, Door Control |
|
- | |||||
| 8 | 2319866 | Ladder, Shelf (2) |
|
$ 22.16 | |||||
| 9 | 2301235 | Slide, Door Control |
|
- | |||||
| 10 | W10759522 | Screw (2) (Replaces: W10004810) |
|
$ 8.24 | |||||
| 11 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 12 | WP67006908 | Screw (Replaces: 8281244) |
|
Immediately | $ 8.78 | ||||
| 13 | W10899382 | Air Diffuser Assembly (Replaces: W10128734) |
|
Immediately | $ 201.44 | ||||
| 14 | W10128735 | Air Diffuser Cover |
|
- | |||||
| 15 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 16 | WPW10276792 | Reservoir (Replaces: 2307107) |
|
$ 144.45 | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 18 | 2209769 | Light Lens |
|
- | |||||
| 19 | 488280 | Screw |
|
- | |||||
| 20 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 21 | W10284481 | Trim, Light (Replaces: 2326209) |
|
- | |||||
| 22 | WPA3073101 | Bulb, Light (2) (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 23 | 2223680 | Shield, Heat |
|
$ 93.52 | |||||
| 24 | WPW10191429 | Socket, Light (2) (Replaces: 2223857) |
|
$ 8.80 | |||||
| 25 | 2223506 | Lens, Light |
|
$ 47.17 | |||||
| 26 | 2310527 | Wire Assy, Light |
|
- |
