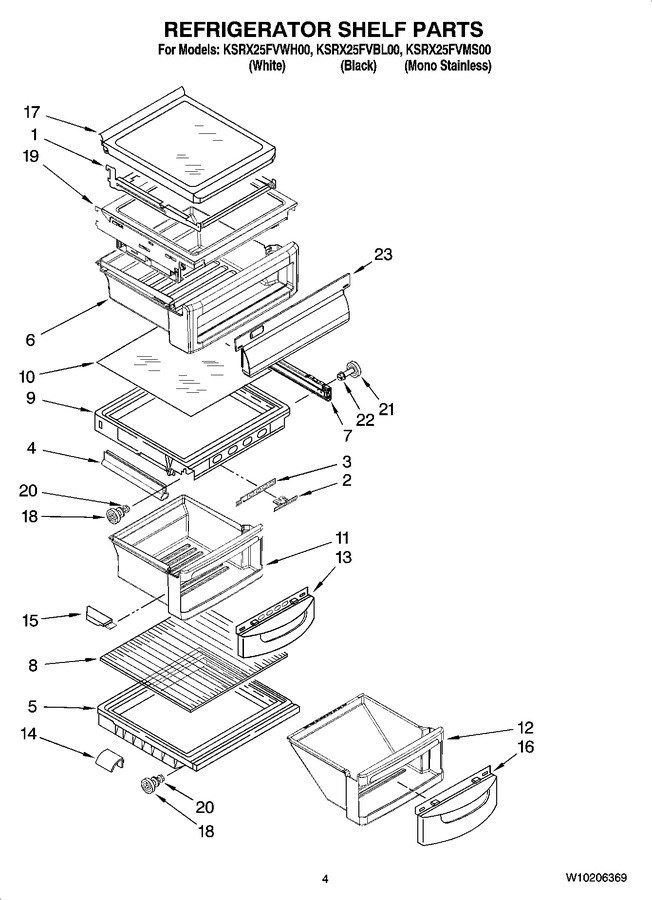

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195975		Shelf Assembly,cantilever (3)				$ 84.01
2	2301025		Button, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	2301568		Cover, Meat Pan (includes Item 14)		Appelez-nous	-
6	W10165555		Snack Pan (includes 30)		Appelez-nous	-
7	2301548		Glide Assy (right Side)				$ 224.83
7	2301549		Glide Assy (left Side)				$ 123.81
8	2301010		Glass, Cover		Appelez-nous	-
9	2301567		Cover, Crisper (includes 2, 3, 4)				$ 237.90
10	W10141754		Glass, Cover				$ 97.81
11	W10165598		Crisper Pan (includes 13 & 15)		Appelez-nous	-
12	W10165656		Meat Pan (includes 16)				$ 58.64
13	2301009		Window, Crisper				$ 139.09
14	2301126		Deflector		Appelez-nous	-
15	2301017		Cap, Crisper Pan (left Side)		Appelez-nous	-
15	2301016		Cap, Crisper Pan (right Side)		Appelez-nous	-
16	2301227		Window, Meat Pan		Appelez-nous	-
17	2216102		Shelf & Roller Assembly		Appelez-nous	-
18	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
19	2301566		Shelf, Snack Pan				$ 151.83
20	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
22	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
23	2301006		Trim, Snack Pan				$ 135.77
