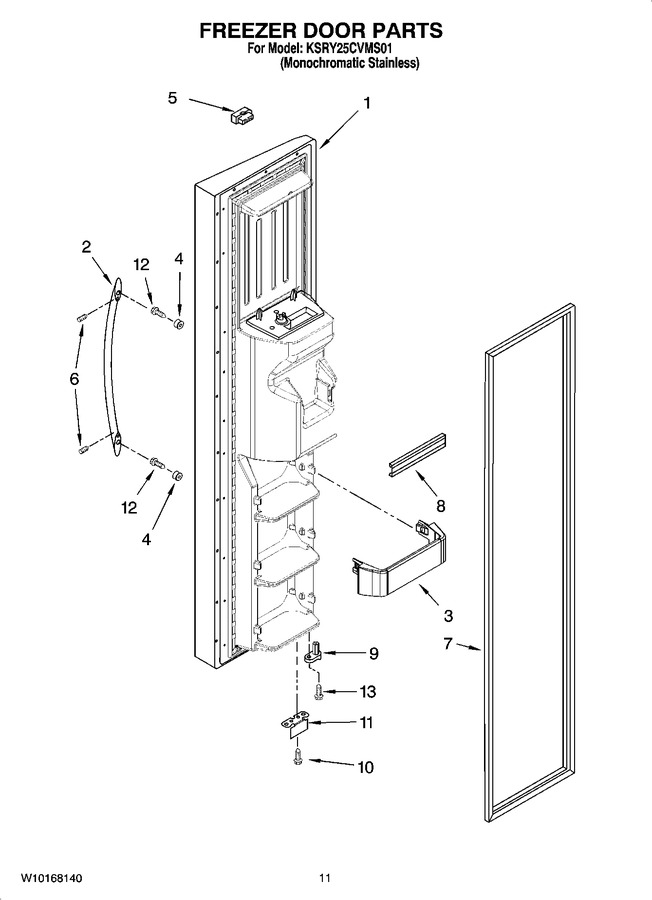

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10167207 | Freezer Door (includes 7 And Dispenser Front Parts) (monochromatic Stainless) |
|
- | |||||
| 2 | 2304832S | Handle (stainless) |
|
$ 131.26 | |||||
| 3 | 2223559K | Trivet (3) |
|
- | |||||
| 4 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 5 | 2154472 | Housing Connector |
|
- | |||||
| 6 | W11366418 | Set Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 7 | W10136735 | Door Gasket, Magnetic (mist Beige) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 8 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 12 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 13 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
