01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

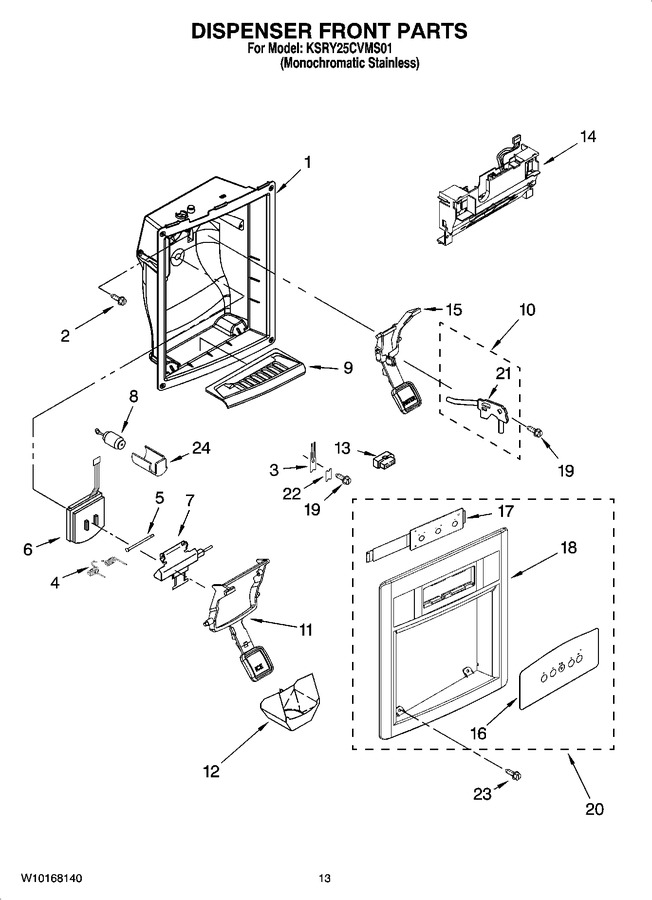

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3400906		Screw   (Replaces: 489000)				$ 9.05
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2207007AP		Grille, Overflow (apollo Gray)		Appelez-nous	-
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 140.84
11	2259396AP		Lever, Ice Dispenser (apollo Gray)		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	1128252		Connector		Appelez-nous	-
14	W10133702		Bracket, Control		Appelez-nous	-
15	2259395AP		Lever, Water Dispenser (apollo Gray)		Appelez-nous	-
19	WP3400906		Screw   (Replaces: 489000)				$ 9.05
20	2252084US		Front Cover Assembly (includes Items 16, 17 & 18) (universal Silver)		Appelez-nous	-
21	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 16.38
22	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
23	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 8.18
24	2252127		Sleeve, Mechanism				$ 22.00
