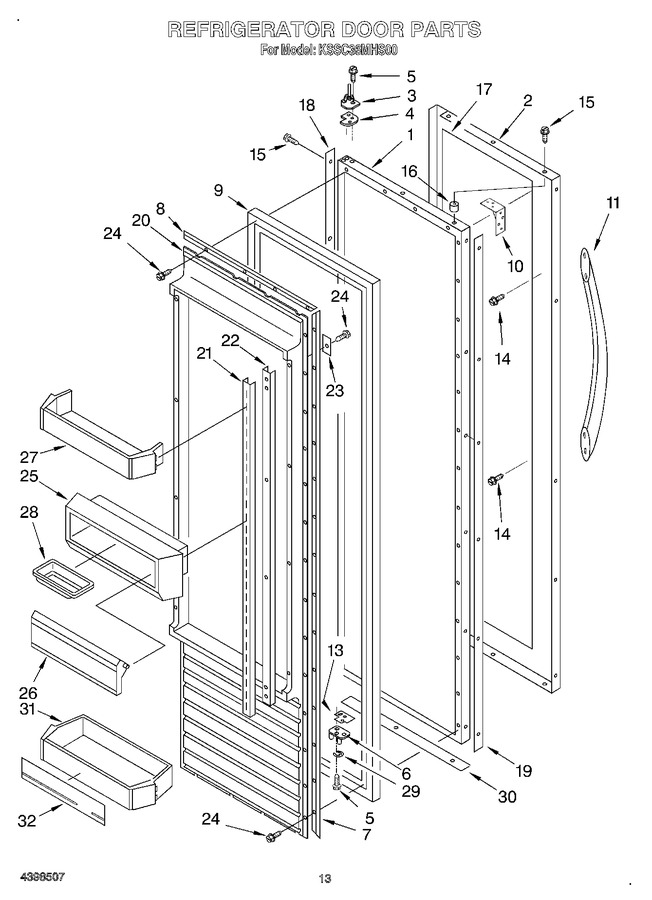

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003870 | Refrigerator Door Panel (includes Insulation) |
|
- | |||||
| 2 | 2005281 | Door Skin |
|
- | |||||
| 3 | 2005329 | Hinge Assembly, Top |
|
- | |||||
| 4 | 2004520 | Spacer-door, Top |
|
- | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2004523 | Hinge Assembly, Bottom |
|
$ 29.76 | |||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112539 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188319A | Door Gasket, Magnetic (Replaces: 2005531) |
|
Immediately | $ 332.23 | ||||
| 10 | 2004447 | Brace, Door Corner |
|
- | |||||
| 11 | 2005290 | Handle, Door |
|
$ 130.36 | |||||
| 13 | 2004549 | Door, Spacer Bottom |
|
- | |||||
| 14 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 15 | WP488729 | Screw (stainless Steel) (Replaces: 487052) |
|
Immediately | $ 8.28 | ||||
| 16 | 2005433 | Spacer, Top |
|
$ 23.33 | |||||
| 17 | 2005323 | Filler, Door |
|
- | |||||
| 18 | 2005030 | Spacer, Hinge Side |
|
- | |||||
| 19 | 2005330 | Spacer, Handle Side |
|
- | |||||
| 20 | 1113952 | Panel, Interior Door |
|
- | |||||
| 21 | 1113951 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1112530 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 25 | 1112720 | Bin, Utility |
|
- | |||||
| 26 | 2003463 | Door, Utility Bin |
|
- | |||||
| 27 | 2003130 | Door Shelf (4) |
|
- | |||||
| 28 | 2165792 | Tray, Butter |
|
- | |||||
| 29 | 2004881 | Retaining Ring, Door-closure |
|
- | |||||
| 30 | WP2257333 | Spacer, Door-skin (bottom) (Replaces: 2004933) |
|
$ 140.92 | |||||
| 31 | 2207459 | Shelf, Gallon Door |
|
- | |||||
| 32 | 2207460 | Overlay, Gallon Door Shelf |
|
- |
