SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Air Flow And Reservoir


15 - Ice Maker

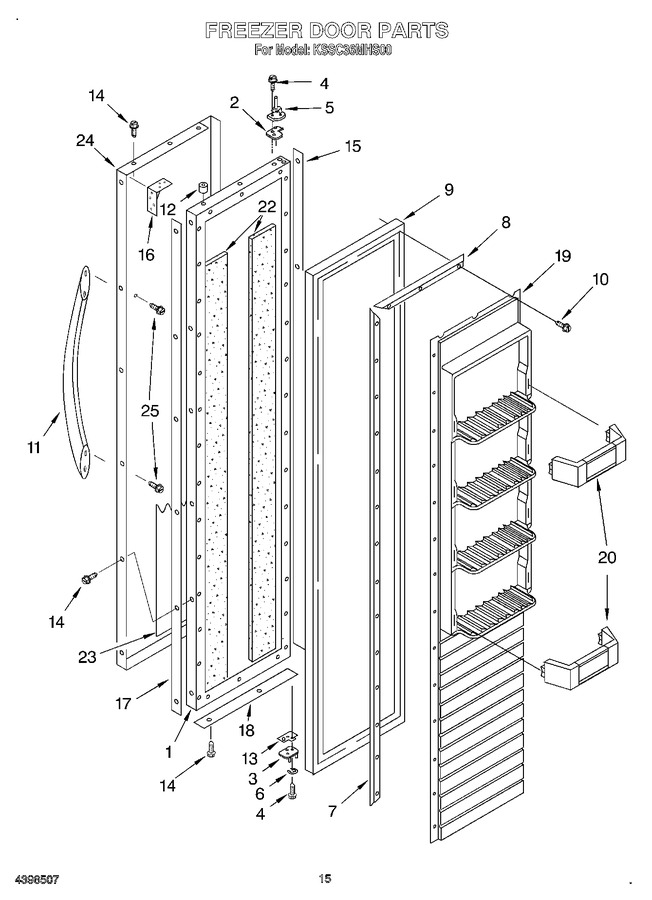

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003876		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2004520		Spacer-door, Top		Appelez-nous	-
3	2004524		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	2005329		Hinge, Top		Appelez-nous	-
6	2004881		Retaining Ring, Door-closure		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2005529		Door Gasket, Magnetic		Appelez-nous	-
10	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
11	2005290		Handle, Door				$ 130.36
12	2005433		Spacer, Top				$ 23.33
13	2004549		Door, Spacer		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 8.28
15	2005030		Spacer, Hinge Side		Appelez-nous	-
16	2004447		Brace, Door Corner		Appelez-nous	-
17	2005330		Spacer, Handle Side		Appelez-nous	-
18	2004931		Spacer, Door Skin Bottom		Appelez-nous	-
19	2000177		Panel, Interior Door		Appelez-nous	-
20	2003127		Shelf Bin (4)		Appelez-nous	-
22	2005610		Seal		Appelez-nous	-
23	2005324		Filler, Door		Appelez-nous	-
24	2005287		Door Skin		Appelez-nous	-
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
