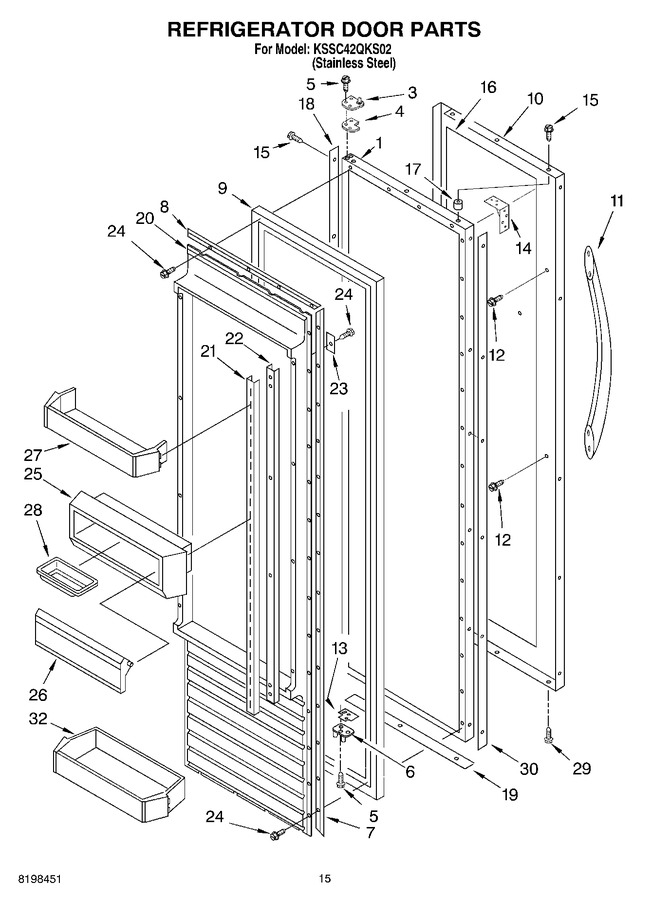

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259181 | Refrigerator Door Panel (includes Insulation) |
|
- | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2256388) |
|
$ 312.50 | |||||
| 4 | 2256381 | Spacer-door, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom (Replaces: 2256389) |
|
Immediately | $ 91.01 | ||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112541 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188498 | Door Gasket, Magnetic |
|
- | |||||
| 10 | 2006772 | Door Skin |
|
- | |||||
| 11 | 2005290 | Handle, Door |
|
$ 130.36 | |||||
| 12 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 13 | 2257637 | Door Spacer, Bottom |
|
$ 15.45 | |||||
| 14 | 2258951 | Door Brace, Corner |
|
$ 33.35 | |||||
| 15 | WP8281250 | Screw (Replaces: 8281250) |
|
$ 11.42 | |||||
| 16 | 2005326 | Filler, Door |
|
- | |||||
| 17 | 2005433 | Spacer, Door (top) |
|
$ 23.33 | |||||
| 18 | 2005030 | Scpcer, Door (hinge Side) |
|
- | |||||
| 19 | 2004934 | Spacer, Door Bottom |
|
- | |||||
| 20 | 1113953 | Panel, Interior Door |
|
- | |||||
| 21 | 1113951 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1112530 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 25 | 1112721 | Bin, Utility |
|
- | |||||
| 26 | 2003464 | Door, Utility Bin |
|
- | |||||
| 27 | 1113973 | Door Shelf (3) |
|
$ 66.71 | |||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 29 | W10759522 | Screw (Replaces: 488568) |
|
$ 8.24 | |||||
| 30 | 2221012 | Spacer, Door (handle Side) |
|
- | |||||
| 32 | 2188332 | Shelf, Gallon Door |
|
- |
