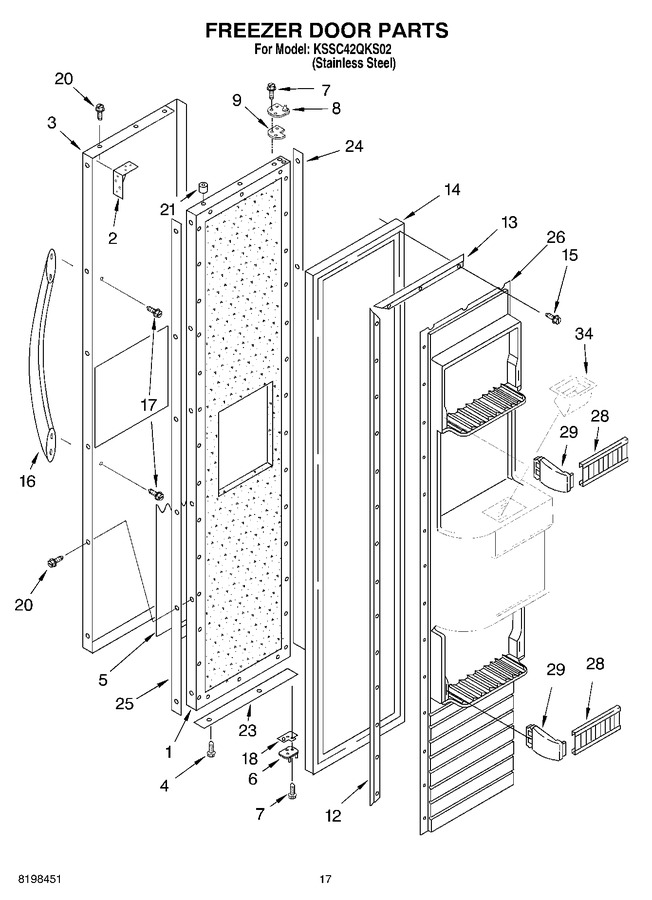

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254749B		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2258951		Door Brace, Corner				$ 33.35
3	2257380		Door Skin		Appelez-nous	-
4	3400091		Screw		Appelez-nous	-
5	2215696		Filler, Door		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2256388)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188496A		Door Gasket, Magnetic   (Replaces: 2188496)				$ 349.40
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2005290		Handle, Door				$ 130.36
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	2257385		Door, Spacer		Appelez-nous	-
20	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door (top)				$ 23.33
23	2257637		Spacer, Door (bottom)				$ 15.45
24	2005030		Spacer, Door Hinge Side		Appelez-nous	-
25	2221012		Spacer, Door (handle Side)		Appelez-nous	-
26	2209028		Panel, Interior Door		Appelez-nous	-
28	2188515		Trim, Shelf (2)		Appelez-nous	-
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
34	2208909		Ice Chute		Appelez-nous	-
