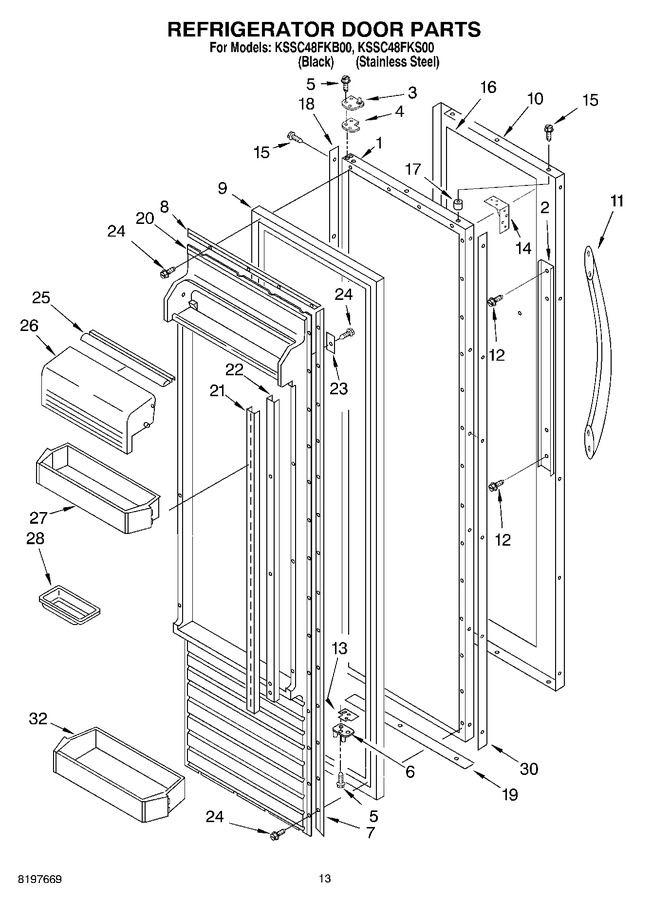

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8201581 | Refrigerator Door Panel |
|
- | |||||
| 2 | 2209202 | Plate, Door Handle |
|
- | |||||
| 3 | 2220922 | Hinge Assembly, Top |
|
- | |||||
| 4 | 2004520 | Spacer-door, Top |
|
- | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2220809 | Hinge Assembly, Bottom |
|
- | |||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112542 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188499 | Door Gasket, Magnetic |
|
- | |||||
| 10 | 2006773 | Door Skin (stainless Steel) |
|
- | |||||
| 10 | 2209102B | Door Skin (black) |
|
- | |||||
| 11 | 2209095B | Handle, Door (black) |
|
- | |||||
| 11 | 2005290 | Handle, Door (stainless Steel) |
|
$ 130.36 | |||||
| 12 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 13 | 2004549 | Door, Spacer Bottom |
|
- | |||||
| 14 | 2004447 | Door Brace, Corner |
|
- | |||||
| 15 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 16 | 2005327 | Filler, Door |
|
- | |||||
| 17 | 2005433 | Spacer, Door (top) |
|
$ 23.33 | |||||
| 18 | 2005030 | Scpcer, Door (hinge Side) |
|
- | |||||
| 19 | WP2257343 | Spacer, Door Bottom (Replaces: 2004935) |
|
$ 86.72 | |||||
| 20 | 1113950 | Panel, Interior Door |
|
- | |||||
| 21 | 1113949 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1113948 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 25 | 1113955 | Gasket |
|
- | |||||
| 26 | 2003465 | Door, Utility Bin |
|
- | |||||
| 27 | 1113974 | Door Shelf (3) |
|
$ 78.21 | |||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 30 | 2221012 | Spacer, Door (handle Side) |
|
- | |||||
| 32 | 2188333 | Shelf, Gallon Door |
|
- |
