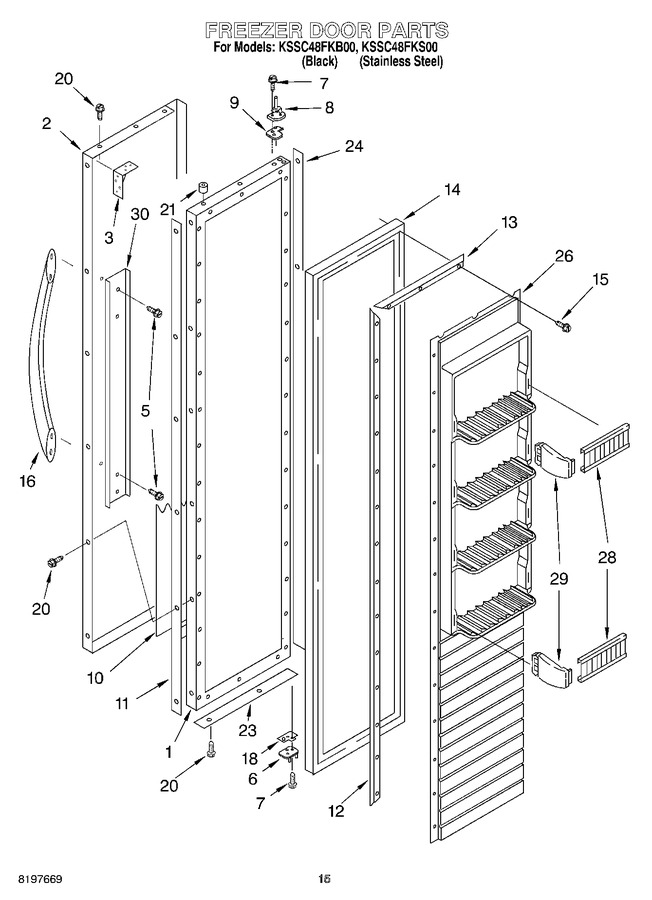

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201579		Freezer Door Panel		Appelez-nous	-
2	2006776		Skin, Door (stainless Steel)		Appelez-nous	-
2	2209103B		Skin, Door (black)		Appelez-nous	-
3	2004447		Brace, Door Corner		Appelez-nous	-
5	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
6	2220810		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2220922		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	2005323		Filler, Door		Appelez-nous	-
11	2221012		Spacer, Handle Side		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188497		Door Gasket, Magnetic		Appelez-nous	-
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2209095B		Handle, Door (black)		Appelez-nous	-
16	2005290		Handle, Door (stainless Steel)				$ 130.36
18	2004549		Door, Spacer		Appelez-nous	-
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
21	2005433		Spacer, Top				$ 23.33
23	WP2257333		Spacer, Door Bottom   (Replaces: 2004933)				$ 140.92
24	2005030		Spacer, Hinge Side		Appelez-nous	-
26	2209032		Panel, Interior Door		Appelez-nous	-
28	2195934		Shelf Bin (4)				$ 46.59
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
30	2209202		Plate, Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
