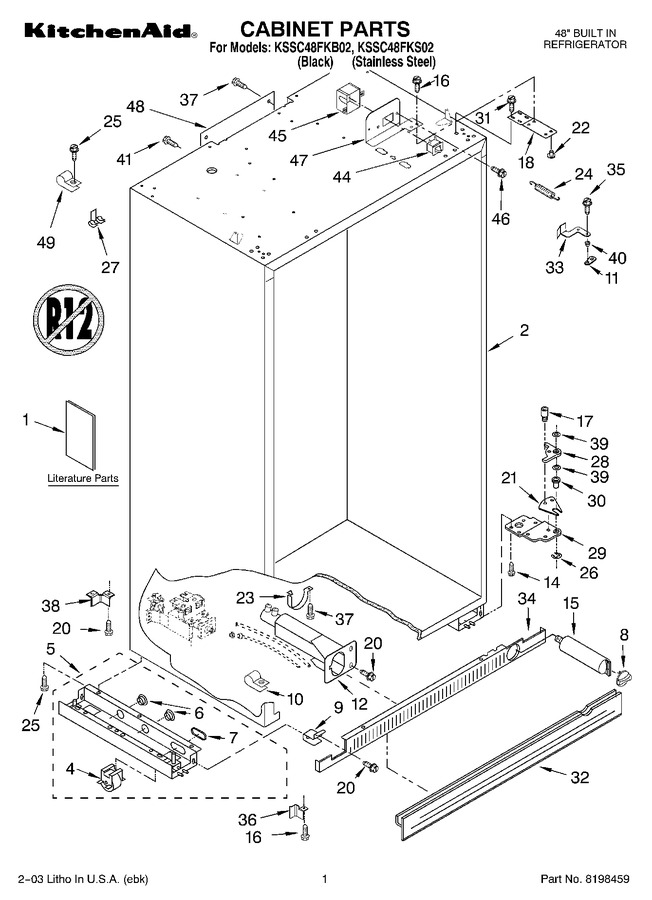

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2266877		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT2254714		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2221227		Literature Parts (energy Label)		Appelez-nous	-
1	LIT2254722		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
2	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 43.18
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 364.76
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 363.65
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
8	WP2186494B		Cap Water Filter   (Replaces: 2186494B)			Immediately	$ 53.20
9	2006442		Mounting Stud, Grill		Appelez-nous	-
10	W10833902		Clamp   (Replaces: 2221070)				$ 10.99
11	2005783		Cam, Door Closer				$ 26.20
12	WP2209022		Housing, Water Filter   (Replaces: 2209022)			Immediately	$ 234.82
14	3400525		Screw				$ 12.83
15	EDR5RXD1B		Filter, Water   (Replaces: 2203221)			Immediately	$ 49.99
16	WP489399		Screw   (Replaces: 489399)				$ 6.95
17	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 11.10
18	2257644		Hinge (top)				$ 169.50
20	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
21	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.96
22	2002903		Bushing				$ 34.41
23	2209090		Clamp, Filter Housing		Appelez-nous	-
24	WP2004517		Spring, Door Closure (2)   (Replaces: 2004517)			Immediately	$ 90.89
25	W11624204		Screw   (Replaces: 486194)				$ 14.02
26	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.17
27	1113227		Fastener (3)		Appelez-nous	-
28	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
29	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 285.08
29	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 130.70
30	WP2302876		Bushing, Adjustable   (Replaces: 2004992)			Immediately	$ 86.40
31	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.08
32	2209026B		Skirt-grille, Bottom				$ 76.14
33	WPW10121046		Extension Arm, Door Closer (left)   (Replaces: 2221094)			Immediately	$ 79.72
33	WP2307857		Extension Arm, Door Closer (right)   (Replaces: 2221095)			Immediately	$ 75.52
34	2209431B		Grille Bottom, Front				$ 82.32
35	2005921		Screw				$ 7.65
36	2006616		Bracket, Support Base (front) (left)				$ 87.17
36	2006556		Bracket, Support Base (front) (right)				$ 35.43
37	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
38	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
39	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
40	WP2316859		Bushing, Extension Arm   (Replaces: 2006960)			Immediately	$ 51.62
41	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
44	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 37.23
44	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 38.18
45	2215938		Cover, Switch (2)				$ 90.27
46	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 10.72
47	W10741111		Bracket, Cover (right)   (Replaces: 2221097)				$ 64.16
47	2221096		Bracket, Cover (left)				$ 93.20
48	2209449		Cover, Rear		Appelez-nous	-
49	W10833902		Tube Clamp   (Replaces: 2221070)				$ 10.99
