Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2259182 Refrigerator Door Panel (includes Insulation) Appelez-nous -
2 2209202 Plate, Door Handle Appelez-nous -
3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 2256381 Spacer-door, Top Special Order $ 24.49

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom   (Replaces: 2256389) In-Stock Immediately $ 91.01

7 1112533 Gasket Retainer, Side (2) Appelez-nous -
8 1112542 Gasket Retainer, Top & Bottom Appelez-nous -
9 2188499 Door Gasket, Magnetic Appelez-nous -
10 2006773 Door Skin (stainless Steel) Appelez-nous -
10 2209102B Door Skin (black) Appelez-nous -
11 2209095B Handle, Door (black) Appelez-nous -
11 2005290 Handle, Door (stainless Steel) Special Order $ 130.36

12 WP308544 Screw   (Replaces: 308544) In-Stock Immediately $ 8.30

13 2257637 Door Spacer, Bottom Special Order $ 15.45

14 2258951 Door Brace, Corner Special Order $ 33.35

15 WP8281250 Screw Stainless Steel   (Replaces: 8281250) Special Order $ 11.42

15 W10851443 Screw (black)   (Replaces: 8281252) In-Stock Immediately $ 8.13

16 2005327 Filler, Door Appelez-nous -
17 2005433 Spacer, Door (top) Special Order $ 23.33

18 2005030 Scpcer, Door (hinge Side) Appelez-nous -
19 WP2257343 Spacer, Door Bottom   (Replaces: 2004935) Special Order $ 86.72

20 1113950 Panel, Interior Door Appelez-nous -
21 1113949 Ladder, Shelf (2) Appelez-nous -
22 1113948 Retainer, Shelf Ladder (2) Appelez-nous -
23 1112514 Back Up Plate (8) Appelez-nous -
24 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

25 1113955 Gasket Appelez-nous -
26 2003465 Door, Utility Bin Appelez-nous -
27 1113974 Door Shelf (3) Special Order $ 78.21

28 2165792 Butter Tray Appelez-nous -
30 2221012 Spacer, Door (handle Side) Appelez-nous -
32 2188333 Shelf, Gallon Door Appelez-nous -

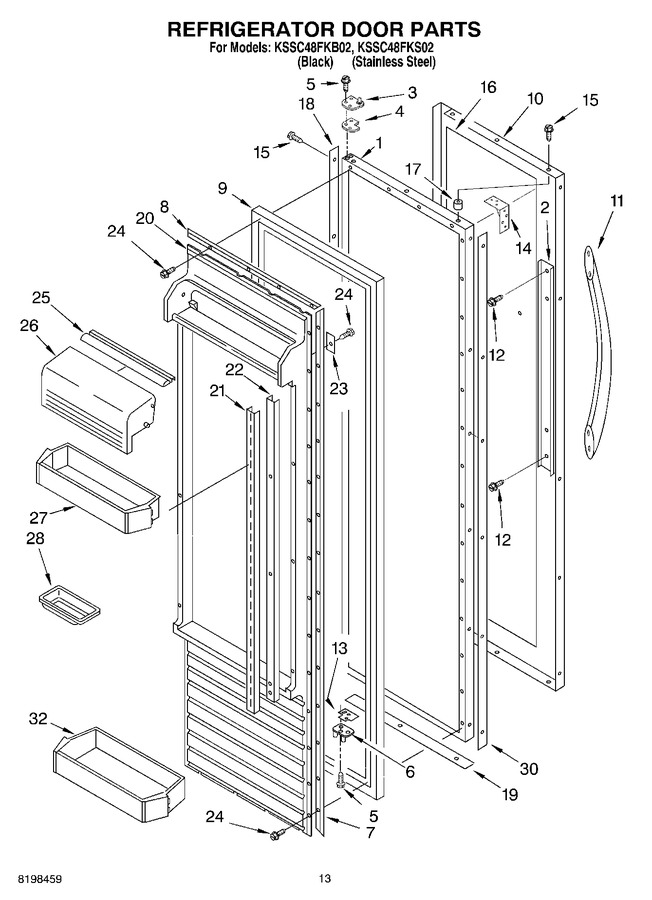

    View Diagram in Separate Window     Print Icon   Print Part List
