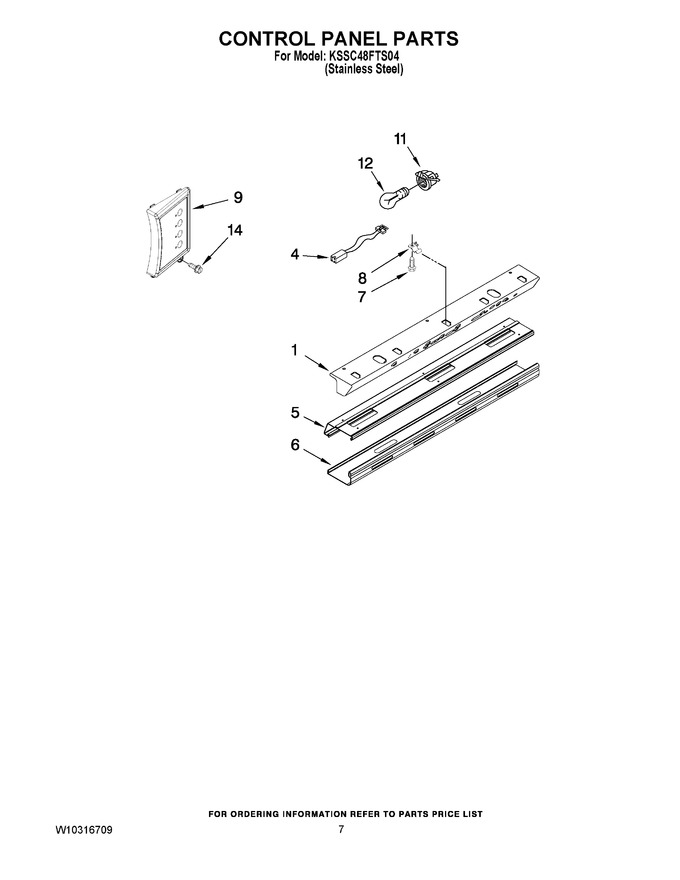

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10468948 | Control Box Assy (Replaces: 2307587) |
|
$ 1,283.87 | |||||
| 4 | 2310164 | Wire, Jumper |
|
- | |||||
| 5 | 2324973 | Bracket, Control Box |
|
- | |||||
| 6 | 2307596 | Shield, Light |
|
$ 65.90 | |||||
| 7 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 8 | 2317000 | Clip, Control Box |
|
- | |||||
| 9 | WP2306086 | Display Board, Ingredient Care Center (Replaces: 2306086) |
|
$ 333.46 | |||||
| 11 | WPW10191429 | Socket, Light (Replaces: 2223857) |
|
$ 8.80 | |||||
| 12 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 14 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 10.33 |
