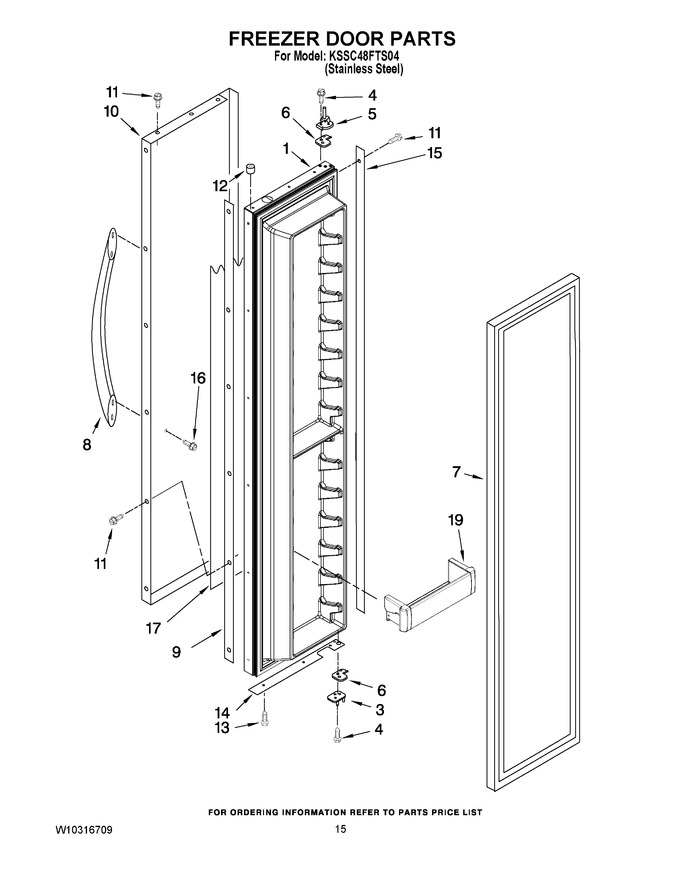

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193487		Freezer Door (includes No.14)		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
8	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
9	2309056		Spacer, Door-skin (handle Side)		Appelez-nous	-
10	2307757		Skin, Door		Appelez-nous	-
11	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door-skin (top)				$ 23.33
13	W10759522		Screw   (Replaces: 488568)				$ 8.24
14	WP2257333		Spacer, Door-skin (bottom)   (Replaces: 2004933)				$ 140.92
15	W10142296		Spacer, Door-skin (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
17	2005323		Filler, Door		Appelez-nous	-
19	W11590561		Bin, Door (6)   (Replaces: 2222777)				$ 94.23
