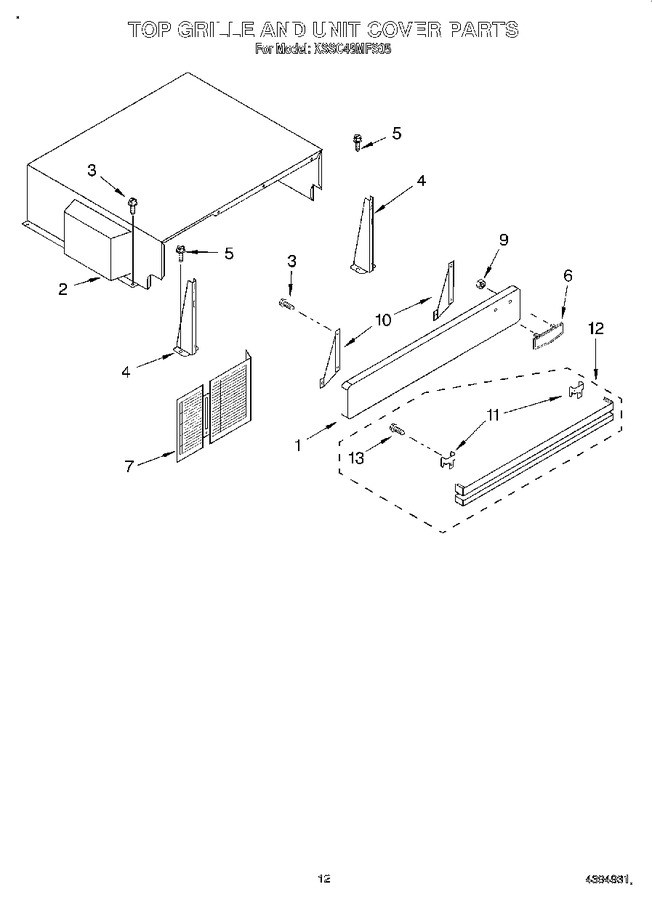

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2005314		Top Grille Assembly		Appelez-nous	-
2	2005549		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 16.65
6	2005292		Nameplate				$ 52.20
7	2005534		Guard, Compressor Wiring		Appelez-nous	-
9	WP2004333		Nut   (Replaces: 2004333)				$ 10.70
10	2005485		Bracket, Trim Panel		Appelez-nous	-
11	2005483		Louver, Bracket		Appelez-nous	-
12	2005259		Vent, Louver		Appelez-nous	-
13	WPW10141625		Screw   (Replaces: 488649)				$ 21.16

    View Diagram in Separate Window       Print Part List
