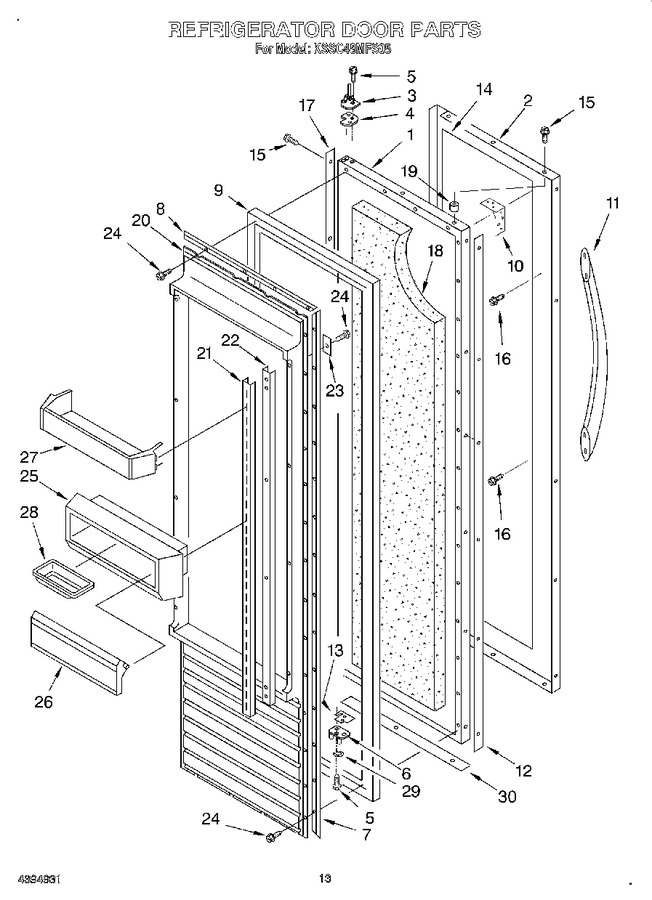

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003872 | Refrigerator Door Panel (includes Insulation) |
|
- | |||||
| 2 | 2005283 | Door Skin |
|
- | |||||
| 3 | 2005329 | Hinge Assembly, Top |
|
- | |||||
| 4 | 2004520 | Spacer-door, Top |
|
- | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.02 | ||||
| 6 | 2004523 | Hinge Assembly, Bottom |
|
$ 29.76 | |||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112542 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188321A | Door Gasket, Magnetic (Replaces: 2001049) |
|
$ 340.46 | |||||
| 10 | 2004447 | Brace, Door Corner |
|
- | |||||
| 11 | 2005290 | Handle, Door |
|
$ 130.36 | |||||
| 12 | 2005320 | Spacer, Handle Side |
|
- | |||||
| 13 | 2004549 | Door, Spacer Bottom |
|
- | |||||
| 14 | 2005327 | Filler, Door |
|
- | |||||
| 15 | WP488729 | Screw (stainless Steel) (Replaces: 487052) |
|
Immediately | $ 7.79 | ||||
| 16 | WP3351614 | Screw (Replaces: 90864) |
|
Immediately | $ 6.95 | ||||
| 17 | 2005030 | Spacer, Hinge Side |
|
- | |||||
| 18 | 2005058 | Insulation, Encapsulated |
|
- | |||||
| 19 | 2005433 | Spacer, Top |
|
$ 22.22 | |||||
| 20 | 1113950 | Panel, Interior Door |
|
- | |||||
| 21 | 1113949 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1113948 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 25 | 1113955 | Gasket |
|
- | |||||
| 26 | 2003465 | Door, Utility Bin |
|
- | |||||
| 27 | 2003132 | Door Shelf (4) |
|
$ 13.02 | |||||
| 28 | 2165792 | Tray, Butter |
|
- | |||||
| 29 | 2004881 | Retaining Ring, Door-closure |
|
- | |||||
| 30 | WP2257343 | Spacer-door, Skin (Replaces: 2004935) |
|
$ 82.59 |
