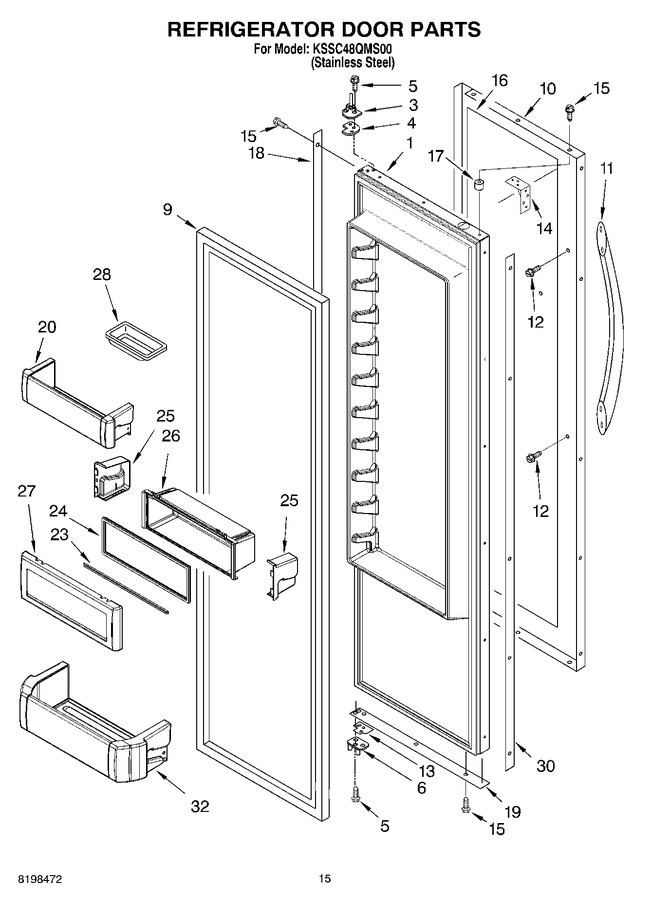

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2252331 | Refrigerator Door |
|
$ 1,681.37 | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 4 | 2256381 | Spacer-door, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom (Replaces: 2256389) |
|
Immediately | $ 91.01 | ||||
| 9 | WP2266903 | Door Gasket, Magnetic (Replaces: 2222812) |
|
Immediately | $ 340.02 | ||||
| 10 | 2006773 | Door Skin |
|
- | |||||
| 11 | 2005290 | Handle, Door |
|
$ 130.36 | |||||
| 12 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 13 | 2257637 | Door Spacer, Bottom |
|
$ 15.45 | |||||
| 14 | 2258951 | Door Brace, Corner |
|
$ 33.35 | |||||
| 15 | WP8281250 | Screw (Replaces: 8281250) |
|
$ 11.42 | |||||
| 16 | 2005327 | Filler, Door |
|
- | |||||
| 17 | 2005433 | Spacer, Door (top) |
|
$ 23.33 | |||||
| 18 | 2005030 | Spacer, Door Hinge Side |
|
- | |||||
| 19 | WP2257343 | Spacer, Door Bottom (Replaces: 2004935) |
|
$ 86.72 | |||||
| 20 | W11752086 | Door Shelf (Replaces: 2222774) |
|
$ 68.19 | |||||
| 23 | W11348580 | Rail, Lid (Replaces: 2222797) |
|
Immediately | $ 162.13 | ||||
| 24 | W11348580 | Gasket, Utility Bin (Replaces: 2222983) |
|
Immediately | $ 162.13 | ||||
| 25 | WPW10323173 | End Cap (left Side) (Replaces: 2222920) |
|
$ 8.60 | |||||
| 25 | WPW10323172 | End Cap (right Side) (Replaces: 2222919) |
|
$ 8.60 | |||||
| 26 | W11348580 | Bin, Utility Center (Replaces: 2222923) |
|
Immediately | $ 162.13 | ||||
| 27 | W11348580 | Door, Utility Bin (Replaces: 2222926) |
|
Immediately | $ 162.13 | ||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 30 | 2005290 | Spacer, Door (handle Side) |
|
$ 130.36 | |||||
| 32 | W10323748 | Shelf, Gallon Door (Replaces: 2222771) |
|
$ 121.78 |
