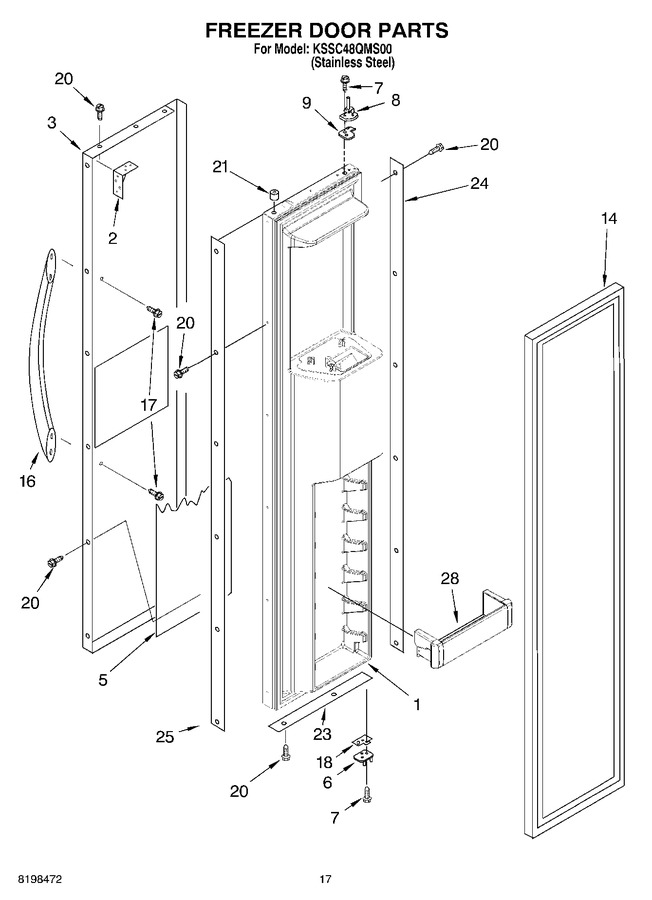

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252325B		Freezer Door		Appelez-nous	-
2	2258951		Door Brace, Corner				$ 33.35
3	2222911		Door Skin		Appelez-nous	-
5	2252392		Filler, Door		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
16	2005290		Handle, Door				$ 130.36
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door (top)				$ 23.33
23	2257386		Spacer, Door (bottom)		Appelez-nous	-
24	2005030		Spacer, Door Hinge Side		Appelez-nous	-
25	2005290		Spacer, Door (handle Side)				$ 130.36
28	W11590561		Door Shelf   (Replaces: 2222777)				$ 94.23
