01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)

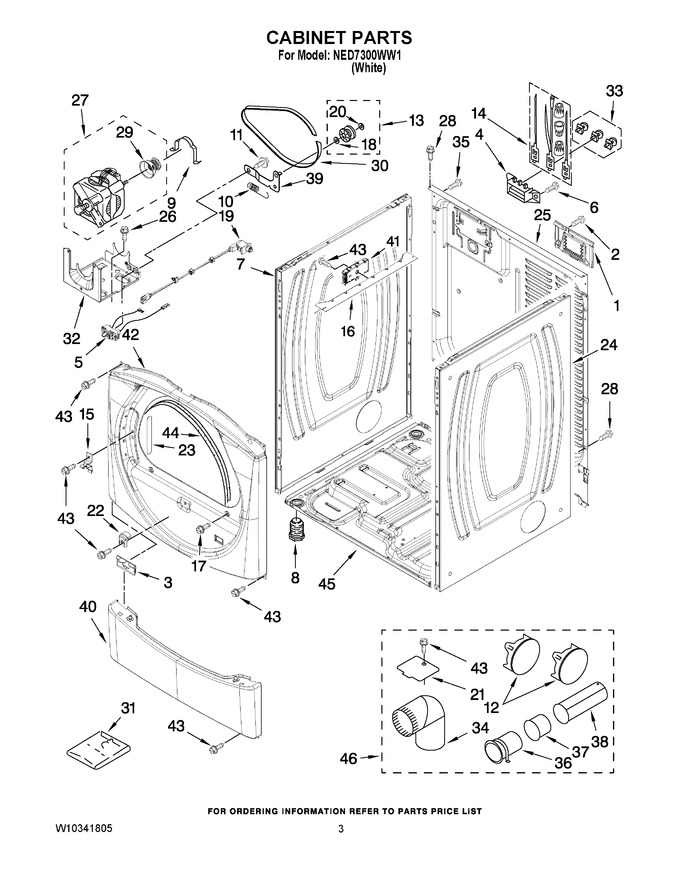

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 36.06
6	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 350.58
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (include, Item. 33 )			Immediately	$ 106.04
15	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
16	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
17	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	W10318609		Switch, Assembly Door				$ 75.64
20	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8565083		Ramp, Door		Appelez-nous	-
23	W10085210		Plug-strip Front Panel				$ 85.03
24	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 350.58
25	8565059		Panel, Rear				$ 244.90
26	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	8572546		Kit, Stack Assembly			Immediately	$ 84.63
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP8540621		Toe Panel   (Replaces: 8540621)				$ 189.38
41	W10235613		Control Board				$ 288.51
42	W10251264		Front Panel (include, Item. 44 )				$ 344.07
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
46	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
