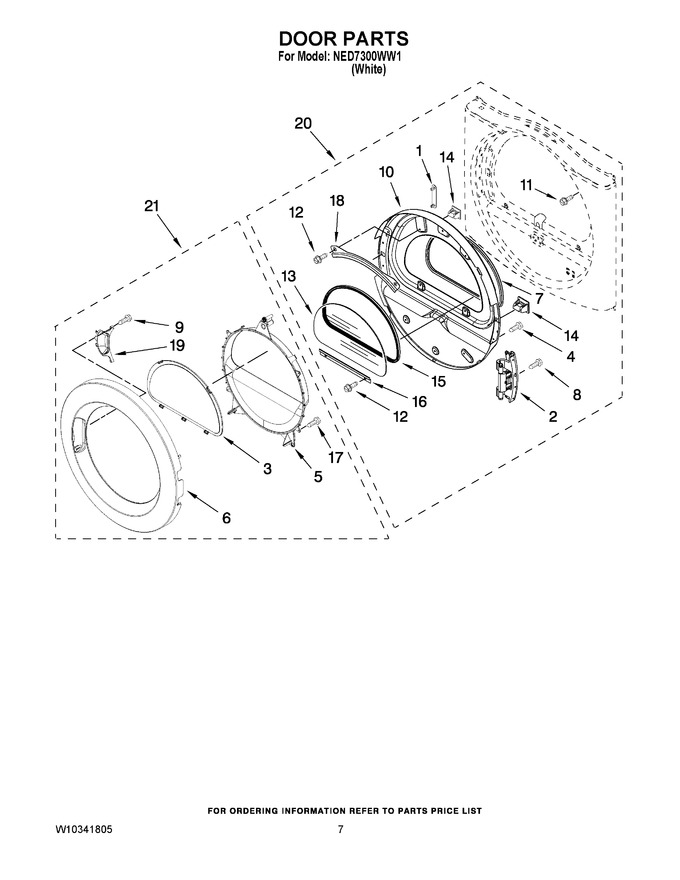

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole Cover (inner Door)   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door Hinge Assembly   (Replaces: W10304672)			Immediately	$ 232.48
3	W10215741		Screen, Door		Appelez-nous	-
4	W11116979		Screw,8-18 X 1/2   (Replaces: 8534044)				$ 13.76
5	W10283424		Door, Intermediate Stationary		Appelez-nous	-
6	W10215742		Door, Outer Ring				$ 353.97
7	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
10	W11690171		Door Assembly (inner) (includes, Item. 1 & 14 )   (Replaces: W10198441)				$ 204.49
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
18	8519356		Retainer (upper)		Appelez-nous	-
19	W10215754		Handle, Door				$ 85.95
20	W10270216		Door, Inner Assembly				$ 141.94
21	W10215753		Door, Outer Assembly				$ 285.86
