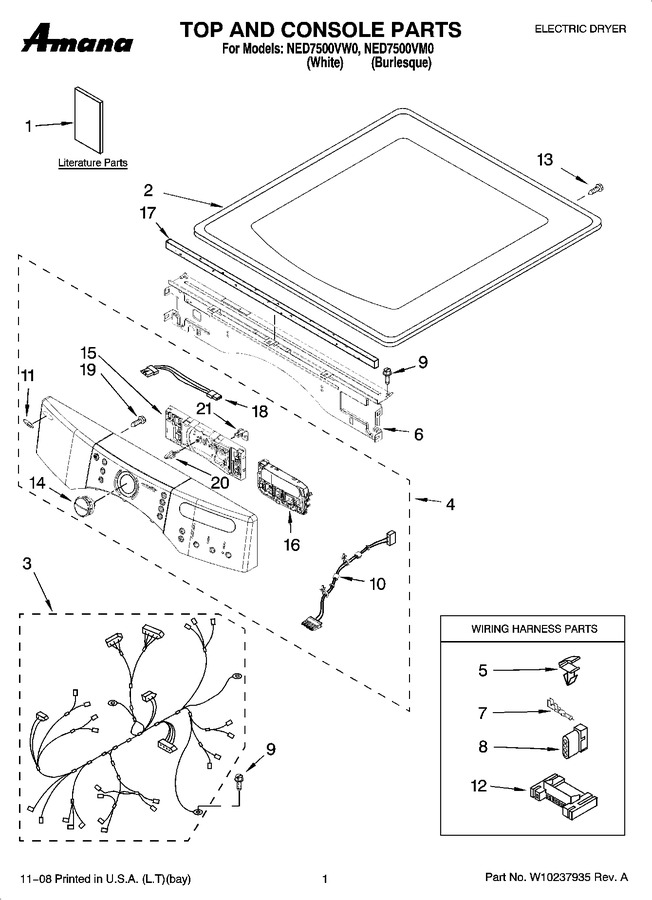

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10216189		Tech Sheet		Appelez-nous	-
1	W10216186		Use & Care Guide		Appelez-nous	-
1	W10134980		Installation, Diagnostic Guide		Appelez-nous	-
1	W10216188		Guide, Quick Start		Appelez-nous	-
2	W10110661		Top (burlesque)		Appelez-nous	-
2	3980634		Top (white)		Appelez-nous	-
3	W10111012		Harness, Main				$ 206.20
4	W10216298		Panel, Console (includes Buttons & Control Board Item. 13) (burlesque)		Appelez-nous	-
4	W10216291		Panel, Console (includes Buttons & Control Board Item. 13) (white)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	W10215656		Bracket, Console (includes Items: 21.)				$ 72.06
7	WP94614		Terminal   (Replaces: 94614)				$ 8.05
8	3936144		Plug, Terminal				$ 21.22
9	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
10	W10111010		Power Cable User Interface		Appelez-nous	-
11	W10216285		Medallion				$ 45.29
12	3395683		Connector, Motor			Immediately	$ 54.45
13	W11808444		Screw, 8-32 X 1/32   (Replaces: 98139)		Appelez-nous	-
14	W10216289		Knob, Assembly (white)		Appelez-nous	-
14	W10216296		Knob, Assembly (burlesque)		Appelez-nous	-
15	W10023340		User-interface Center (includes: Item. 20 )				$ 191.06
16	W10216284		User-interface Right		Appelez-nous	-
17	W10112267		Foam Seal				$ 97.53
18	W10071240		Harness, Communication		Appelez-nous	-
19	W10006580		Screw, Rotary Knob		Appelez-nous	-
20	W10023220		Adapter, Encoder Wheel		Appelez-nous	-
21	W10112268		Clip, Harness		Appelez-nous	-
