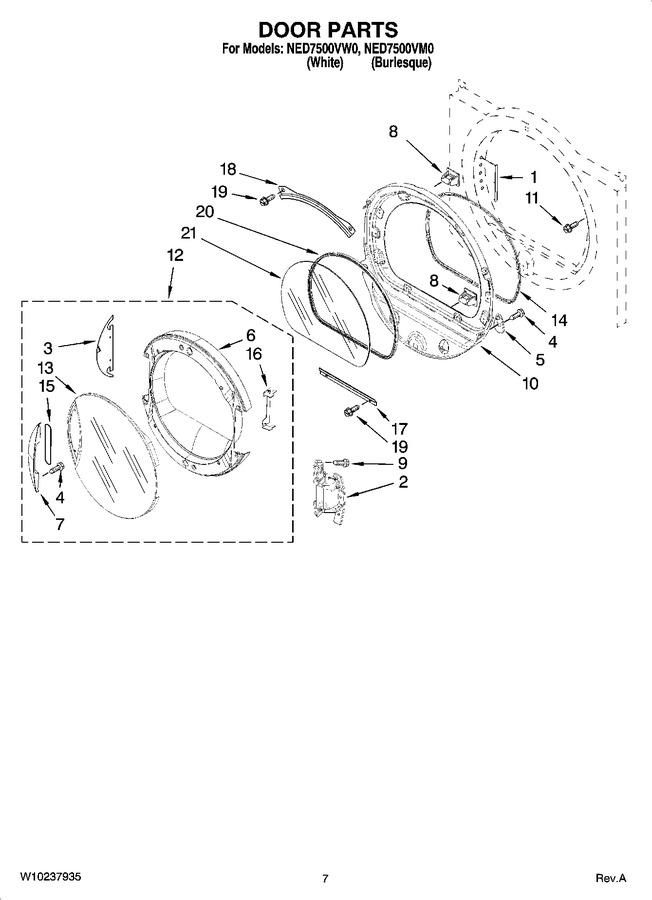

04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10085210 | Label, Hinge Hole (white) |
|
$ 85.03 | |||||
| 1 | WPW10085230 | Label, Hinge Hole (silver) (Replaces: W10085230) |
|
$ 22.95 | |||||
| 2 | WPW10310366 | Door Hinge Assembly (Replaces: W10139920) |
|
Immediately | $ 258.42 | ||||
| 3 | W10180095 | Cover, Door Hinge |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 5 | W10048910 | Screw-plug |
|
- | |||||
| 6 | W10180094 | Door-intermediate |
|
$ 77.02 | |||||
| 7 | 8577305 | Handle, Door (includes Item: 15.) |
|
$ 69.31 | |||||
| 8 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 9 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 8.52 | |||||
| 10 | 8578229 | Door Assembly (inner) (includes Illus. 8 ) |
|
$ 75.57 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 8.48 | |||||
| 12 | W10180090 | Door, Outer Assembly |
|
- | |||||
| 13 | W10180093 | Assembly, Screen & Mass |
|
$ 195.08 | |||||
| 14 | WPW10139457 | Seal Door Assembly (upper) (Replaces: W10139457) |
|
$ 134.28 | |||||
| 15 | 8580117 | Pad-handle |
|
- | |||||
| 16 | W10180096 | Door-shield |
|
- | |||||
| 17 | W10822054 | Retainer-window Lower (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 18 | 8519356 | Retainer-window Upper |
|
- | |||||
| 19 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 20 | 8579662 | Seal-window |
|
$ 106.25 | |||||
| 21 | 8566254 | Glass-window |
|
$ 127.75 | |||||
| NI | 8579666ARP | Kit, Door Reversing (Replaces: 8579666A) |
|
$ 64.73 | |||||
| NI | 8212604 | Paint, Touch-up (1/2oz.) (burlesque) |
|
$ 13.57 | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 40.12 | ||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | |||||
| NI | 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | |||||
| NI | 8529894 | Hold Down Kit |
|
- | |||||
| NI | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | |||||
| NI | 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 62.25 | ||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 |
