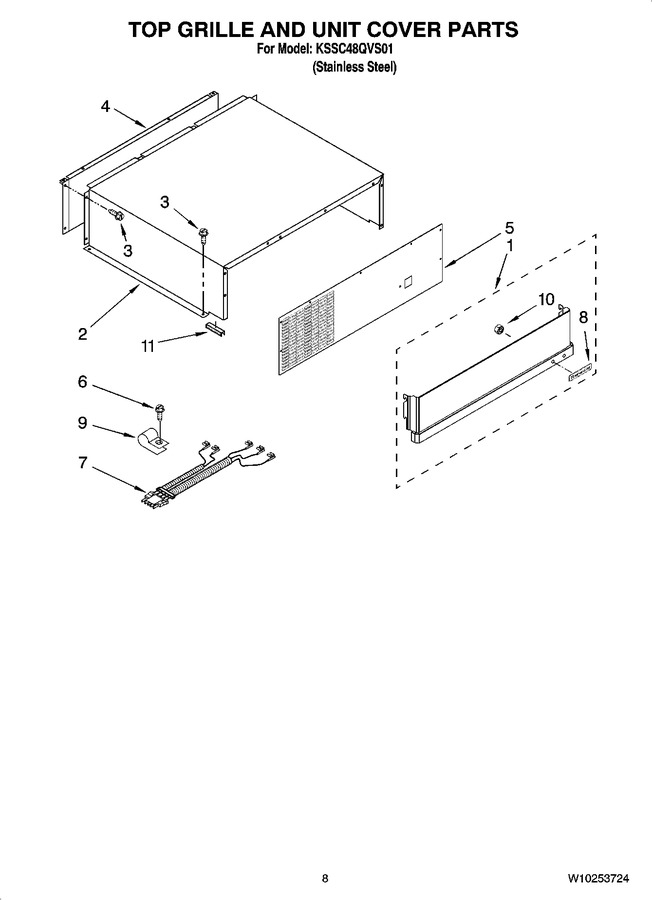

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316738S		Panel, Decorative Assembly (stainless Steel)				$ 225.46
2	W10161693		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	W10185625		Cover, Unit Front				$ 262.53
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	W10167456		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
8	2317923S		Badge, Kitchen Aid		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
11	2215910		Grommet, Flexible				$ 94.32
