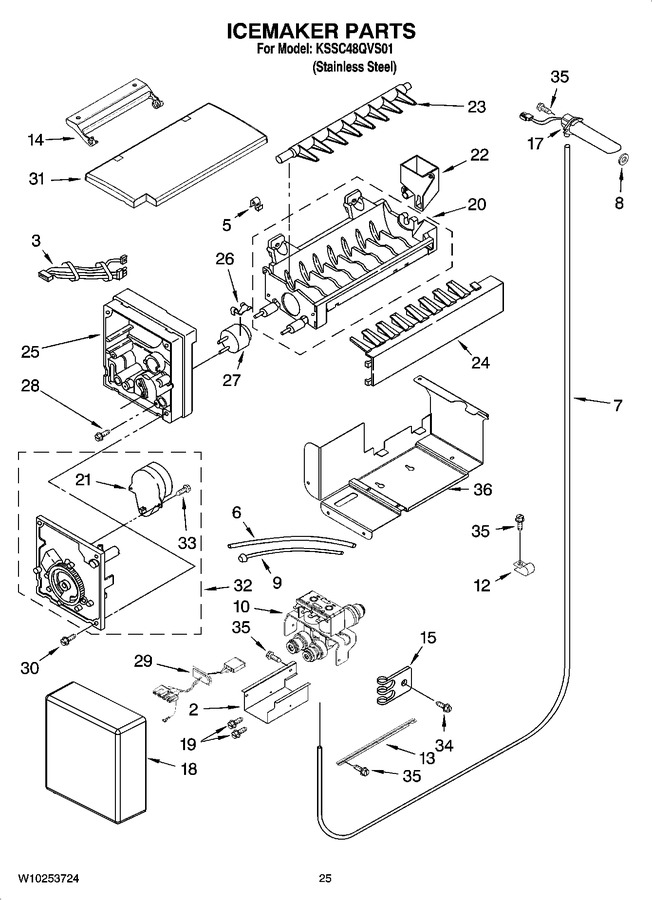

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2320601 | Shield, Valve |
|
$ 120.16 | |||||
| 3 | 2310191 | Wire Assembly, Icemaker |
|
$ 138.83 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10174395) |
|
$ 67.89 | |||||
| 7 | 2320658 | Water Tube |
|
$ 71.00 | |||||
| 8 | 2302758 | Seal Gasket |
|
- | |||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 33.15 | ||||
| 10 | WPW10159842 | Valve, Solenoid (Replaces: W10159842) |
|
Immediately | $ 336.00 | ||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 13 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 14 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.55 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.92 | |||||
| 17 | W10460127 | Tube, Water Inlet (Replaces: 2302756) |
|
$ 208.25 | |||||
| 18 | 2221232 | Cover |
|
- | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | W10297244 | Ice Striper (Replaces: 2198598) |
|
$ 76.80 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 2315522) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw |
|
$ 14.04 | |||||
| 29 | W10139199 | Wire Assembly |
|
$ 145.79 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | WPW10504754 | Cover, Icemaker (Replaces: 2317041) |
|
$ 95.20 | |||||
| 32 | W10190935 | Module Assembly (includes Items 21 & 33) (Replaces: 626680) |
|
Immediately | $ 110.07 | ||||
| 33 | 489136 | Screw, (2) |
|
$ 10.80 | |||||
| 34 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 36 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | WPW10277448 | Complete Icemaker Assembly (Replaces: W10190968) |
|
Immediately | $ 231.43 | ||||
| WPW10395656 | Ice Container Assembly (Replaces: W10127748) |
|
$ 324.42 | ||||||
| 8537055 | Cleaner, Stainless Steel |
|
- |
