SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

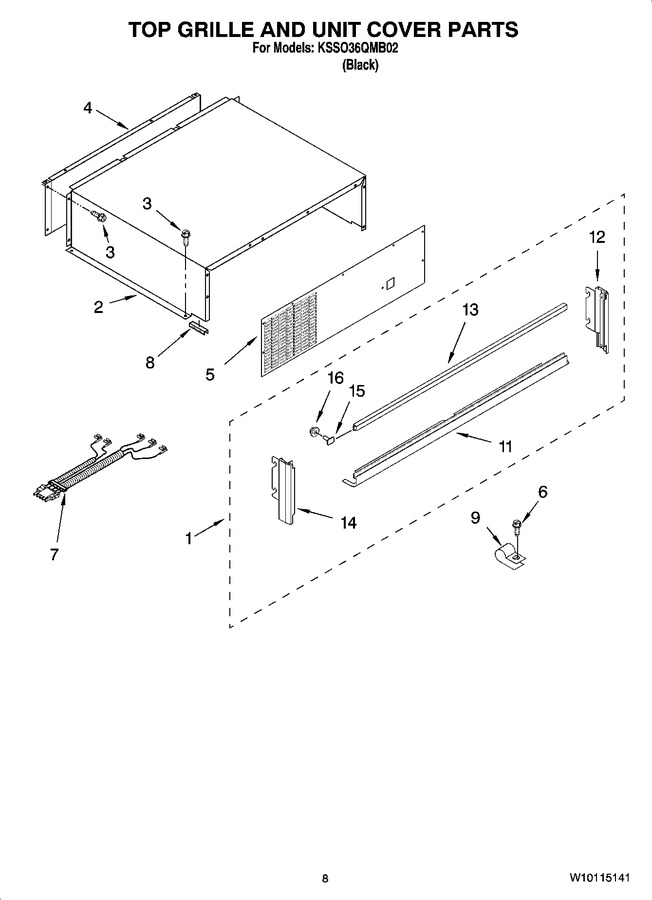

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259422B		Top Grille Assembly (black)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	2320678		Cover-unit, Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2310194		Wire Assembly, Rc/fc Light Switch				$ 69.47
8	2215910		Grommet, Flexible				$ 94.32
9	489348		Clamp		Appelez-nous	-
11	2259434B		Trim-grille, Bottom (black)		Appelez-nous	-
12	2259420B		Trim-grille, Right Side (black)		Appelez-nous	-
13	2259440B		Trim-grille, Top (black)		Appelez-nous	-
14	2259421B		Trim-grille, Left Side (black)		Appelez-nous	-
15	2003347		Screw				$ 14.99
16	WP488130		Nut   (Replaces: 1161548)				$ 7.32

    View Diagram in Separate Window       Print Part List
