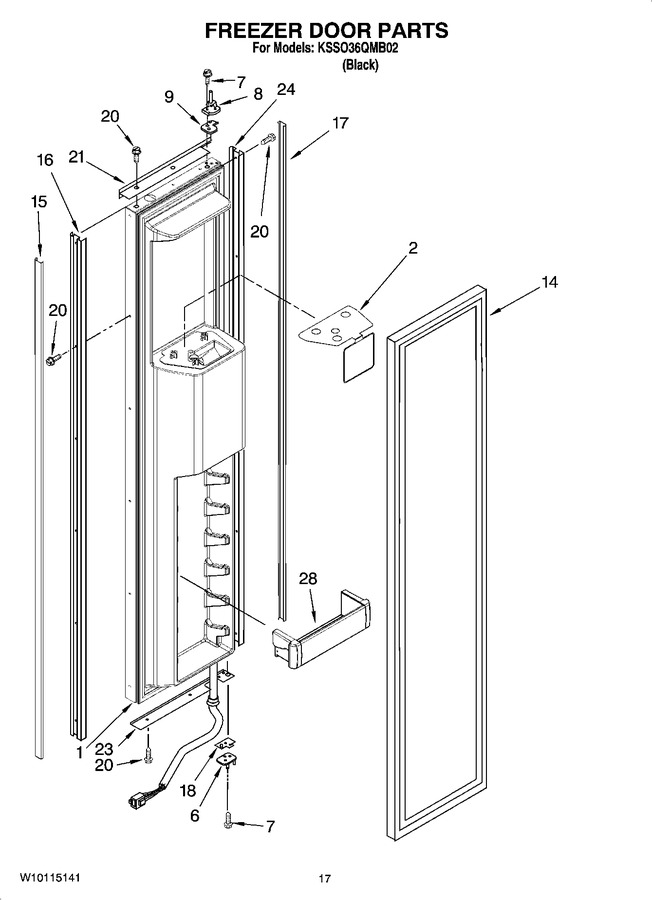

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320570B		Freezer Door Panel (includes Item 14) (black)		Appelez-nous	-
2	2304896		Safety Barrier		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
15	2259365B		Cover, Screw (handle Side) (black)		Appelez-nous	-
16	2259041B		Trim, Door (handle Side) (black)		Appelez-nous	-
17	2259448B		Cover, Screw (hinge Side) (black)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
21	2005885		Trim, Door (top) (black)		Appelez-nous	-
23	2215984B		Trim (bottom) (black)		Appelez-nous	-
24	2257687B		Trim, Door (hinge Side) (black)		Appelez-nous	-
28	W10323601		Bin, Shelf F.c. (3)   (Replaces: 2222775)				$ 92.19
