01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)

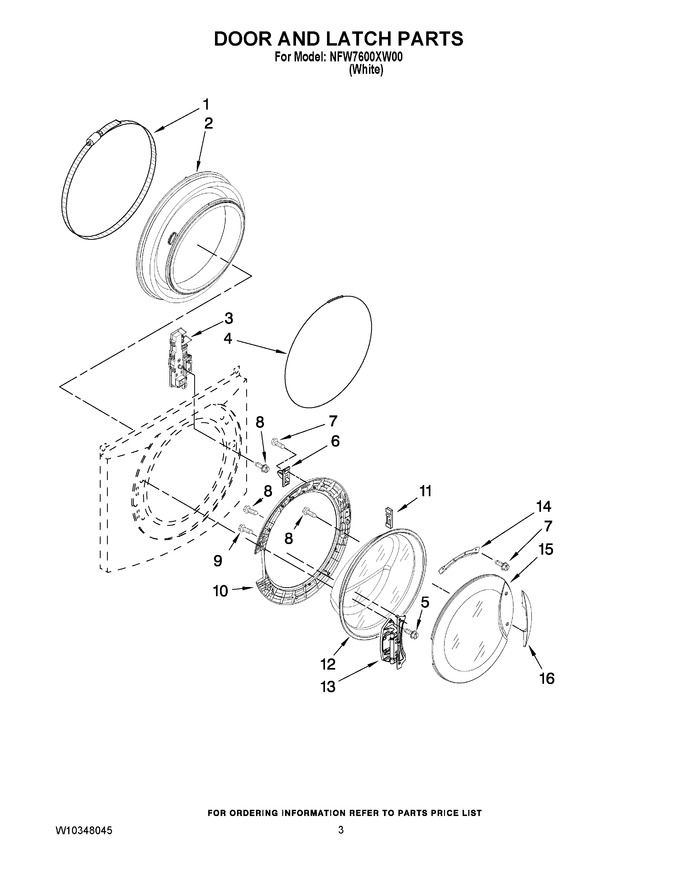

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8182210		Clamp, Bellow To Tub   (Replaces: 8182210)			Immediately	$ 36.79
2	WP8182119		Bellow   (Replaces: 8182119)			Immediately	$ 187.27
3	WP8183270		Lock, Door   (Replaces: 8183270)			Immediately	$ 211.98
4	W10902779		Clamp, Bellow To Front Panel   (Replaces: 8182211)			Immediately	$ 32.94
5	W10313165		Screw		Appelez-nous	-
6	WPW10488048		Hook, Door   (Replaces: W10217552)			Immediately	$ 8.28
7	W11230114		Screw   (Replaces: 8181758)				$ 13.94
8	WP8540282		Screw   (Replaces: 8181661)				$ 12.14
9	WP8181660		Screw   (Replaces: 8181660)				$ 7.30
10	WPW10003370		Frame, Door Back Support   (Replaces: 8183195)				$ 231.38
11	8181659		Clamp, Glass Support		Appelez-nous	-
12	8181655		Glass, Door		Appelez-nous	-
13	WP8183202		Hinge, Door   (Replaces: 8183202)			Immediately	$ 169.21
14	W10295703		Clamp, Glass				$ 19.85
15	8183194		Frame, Door Front Assembly		Appelez-nous	-
16	8183200		Handle, Door				$ 46.13

    View Diagram in Separate Window       Print Part List
