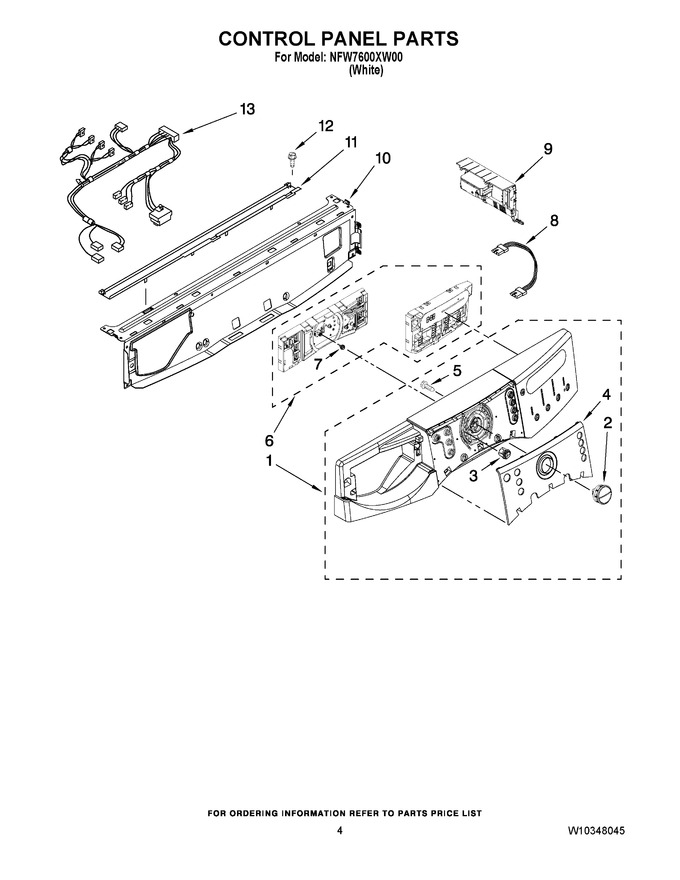

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10219478		Console		Appelez-nous	-
2	W10219484		Knob, Control		Appelez-nous	-
3	8183268		Wheel, Encoder				$ 70.14
4	W10219480		Cover, Console		Appelez-nous	-
5	W10006580		Screw		Appelez-nous	-
6	W10348323		User Interface, Center & Right		Appelez-nous	-
7	8183250		Adapter, Encoder Wheel		Appelez-nous	-
8	W10852624		Harness, Wiring (user Interface)   (Replaces: W10283465)				$ 170.98
9	W10348322		Microcomputer, Machine Control		Appelez-nous	-
10	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 194.85
11	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
12	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
13	W10294894		Harness, Wiring (upper Main)				$ 245.10

    View Diagram in Separate Window       Print Part List
