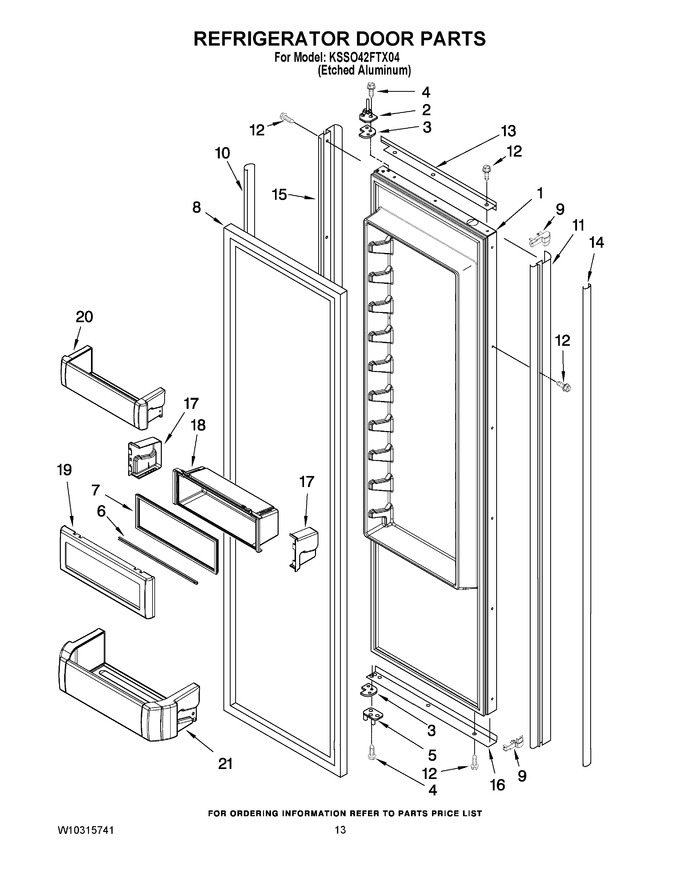

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193490		Refrigerator Door (includes No.8)		Appelez-nous	-
2	2252295		Hinge Assembly, Top				$ 51.53
3	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	2252293		Hinge Assembly, Bottom		Appelez-nous	-
6	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
7	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 153.99
8	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
9	2207457		Trim, Corner				$ 57.12
10	2259448S		Cover, Trim (hinge Side)				$ 179.50
11	2309497S		Trim-door (handle Side)				$ 323.02
12	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
13	2309486S		Trim-door, Top		Appelez-nous	-
14	2314003S		Cover, Trim (handle Side)				$ 174.63
15	2309498S		Trim-door (hinge Side)				$ 324.38
16	2309492S		Trim-door, Btm End Cap		Appelez-nous	-
17	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
17	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
18	W10323042		Bin, Utility (center)   (Replaces: 2222922)				$ 223.93
19	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
20	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 146.61
21	W10323747		Bin, Door   (Replaces: 2222770)				$ 145.36
