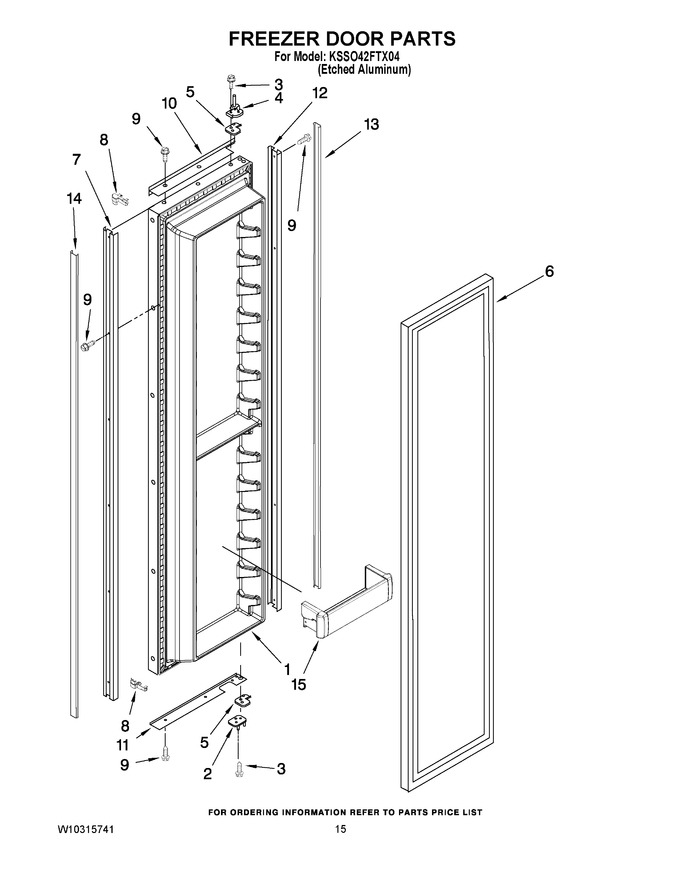

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193486		Freezer Door (includes No.6)		Appelez-nous	-
2	2252294		Hinge, Bottom		Appelez-nous	-
3	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
4	2252295		Hinge, Top				$ 51.53
5	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
6	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
7	2309497S		Trim-door (handle Side)				$ 323.02
8	2207457		Trim, Corner				$ 57.12
9	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
10	2309489S		Trim-door, Top		Appelez-nous	-
11	2309495S		Trim-door, Btm		Appelez-nous	-
12	2309498S		Trim-door (hinge Side)				$ 324.38
13	2259448S		Cover, Trim (hinge Side)				$ 179.50
14	2314003S		Cover, Trim (handle Side)				$ 174.63
15	W10323602		Bin, Door (6)   (Replaces: 2222776)				$ 98.03
