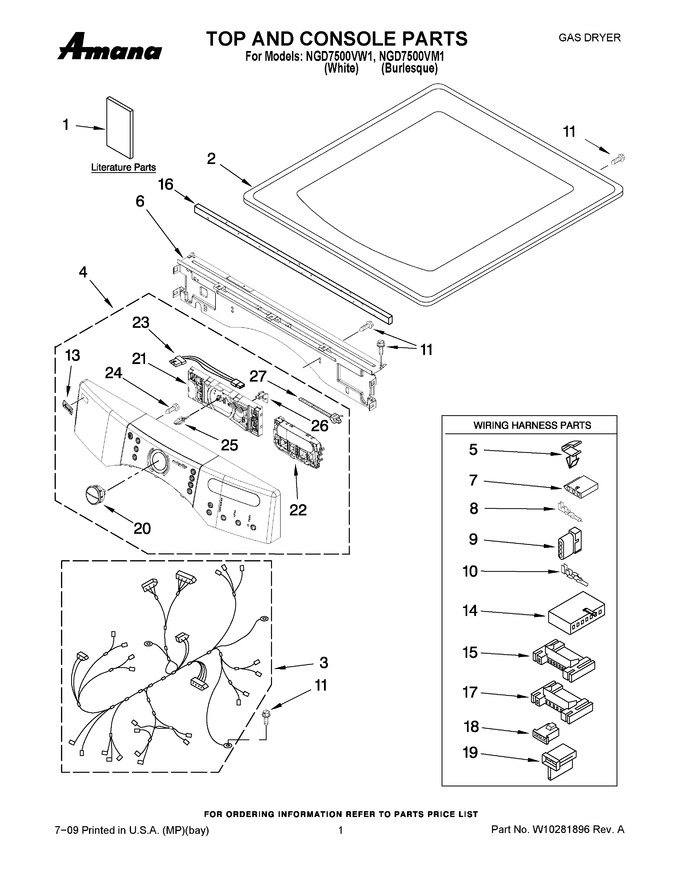

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258382		Tech Sheet		Appelez-nous	-
1	W10239303		Use & Care Guide		Appelez-nous	-
1	W10255469		Installation Instructions		Appelez-nous	-
2	W10110661		Top (burlesque)		Appelez-nous	-
2	3980634		Top (white)		Appelez-nous	-
3	W10111062		Harness, Main		Appelez-nous	-
4	W10216297		Panel, Console (burlesque) (includes Buttons & Control Board & Illus. 13,20,21, 22,23,24,25,26)		Appelez-nous	-
4	WPW10246704		Panel, Console (white)   (Replaces: W10216290)				$ 425.38
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
6	W10215656		Bracket, Console (includes No. 16)				$ 72.06
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	W11808444		Screw, 8-32 X.313   (Replaces: 98139)		Appelez-nous	-
13	W10216285		Name Plate				$ 45.29
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector, Motor			Immediately	$ 54.45
16	W10112267		Foam-seal Control Bracket				$ 97.53
17	2203186		Connector, 5-circuit				$ 13.18
18	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
19	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
20	W10216296		Knob, Assembly (burlesque)		Appelez-nous	-
20	W10216289		Knob, Assembly (white)		Appelez-nous	-
21	W10023340		User-interface (center) (includes: Item. 25 )				$ 191.06
22	W10216284		User-interface Right		Appelez-nous	-
23	W10242905		Harness, Communication		Appelez-nous	-
24	W10006580		Screw, Rotary Knob		Appelez-nous	-
25	W10023220		Adapter, Encoder Wheel		Appelez-nous	-
26	W10112268		Clip, Harness		Appelez-nous	-
27	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
