SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly

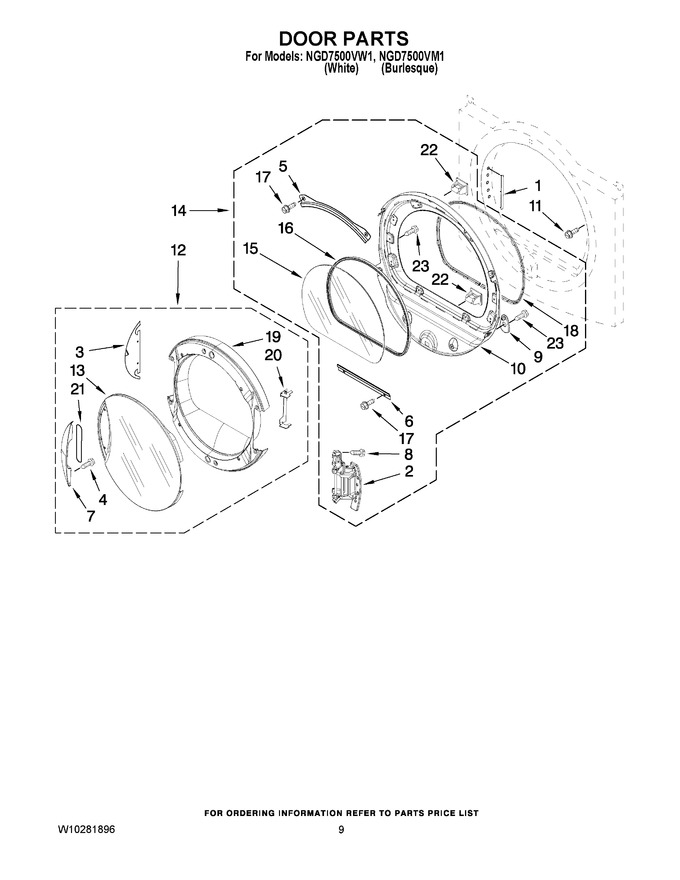

05 - Door Parts


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole (white)				$ 85.03
1	WPW10085230		Label, Hinge Hole (silver)   (Replaces: W10085230)				$ 22.95
2	WPW10310366		Door Hinge Assembly   (Replaces: W10139920)			Immediately	$ 258.42
3	W10180095		Cover, Door Hinge		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	8519356		Retainer-window Upper		Appelez-nous	-
6	W10822054		Retainer-window Lower   (Replaces: 8519354)			Immediately	$ 18.01
7	8577305		Handle-pad Assembly (includes No. 21)				$ 69.31
8	WPW10159996		Screw, 10-24 X 5/16   (Replaces: W10159996)				$ 8.52
9	W10048910		Screw-plug		Appelez-nous	-
10	8578229		Inner Door (includes Illus. 22)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10180090		Outer Door Assembly (includes Illus. 3,4,7,19,20,21)		Appelez-nous	-
13	W10180093		Screen & Mask Assembly				$ 195.08
14	8577819		Inner Door Assembly (includes Illus. 2,5,6,8,9,10,15, 16,17,18,22)		Appelez-nous	-
15	8566254		Window				$ 127.75
16	8579662		Seal-window				$ 106.25
17	WP3373329		Screw, 10-16 X 3/64   (Replaces: 3393258)				$ 8.52
18	WPW10139457		Seal-door   (Replaces: W10139457)				$ 134.28
19	W10180094		Door-intermediate				$ 77.02
20	W10180096		Shield, Door		Appelez-nous	-
21	8580117		Pad-handle		Appelez-nous	-
22	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
23	3400224		Screw,1/4-20x.5				$ 5.27

    View Diagram in Separate Window       Print Part List
