SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Shelf


04 - Refrigerator Liner


05 - Control Panel


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Liner And Air Flow


09 - Motor And Ice Container


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker

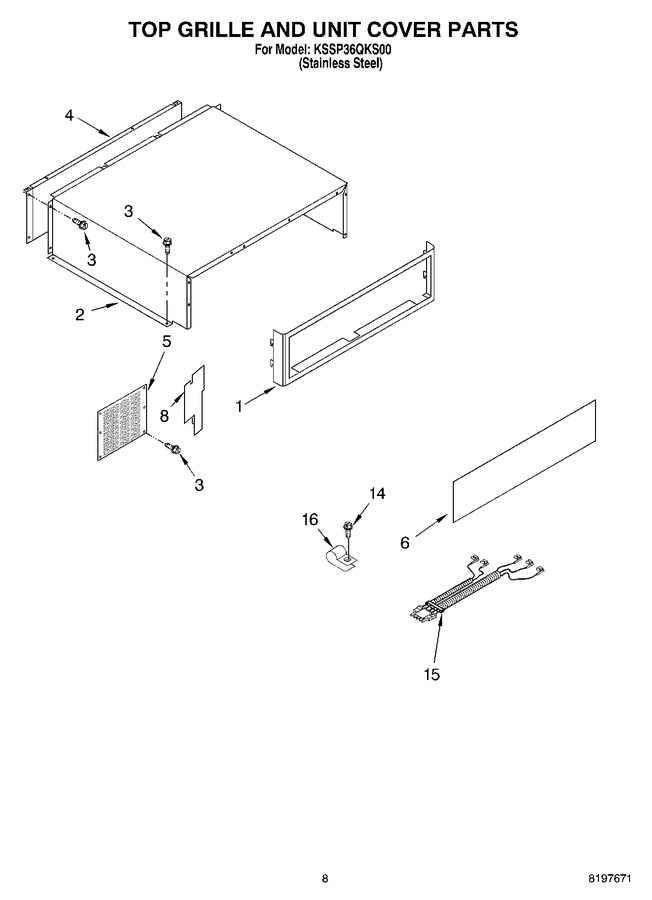

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215924S		Grille Assembly		Appelez-nous	-
2	2209490		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel   (Replaces: 2215830)				$ 327.22
5	2209492		Guard, Wiring		Appelez-nous	-
6	2220944		Panel, Insert		Appelez-nous	-
8	2006440		Baffle-air, Condenser		Appelez-nous	-
14	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
15	2220808		Wire Assembly, Rc/fc Light Switch		Appelez-nous	-
16	489348		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
