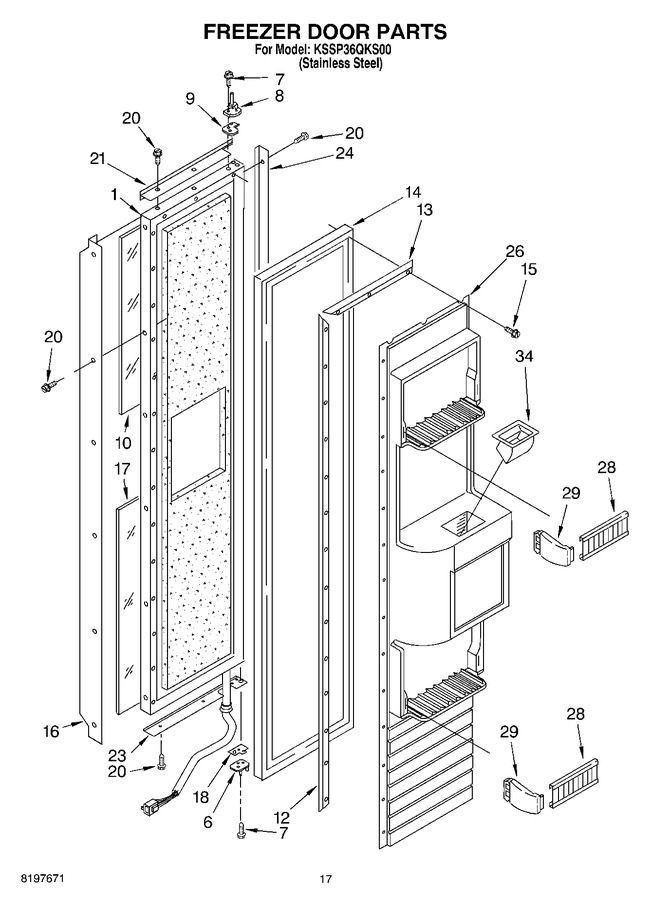

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215657B		Freezer Door Panel (includes Insulation And Dispenser Housing)		Appelez-nous	-
6	2220810		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2220922		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	2209355		Panel, Decorative Upper		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188495		Door Gasket, Magnetic		Appelez-nous	-
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2005944		Handle, Door		Appelez-nous	-
17	2209352		Panel, Decorative Lower		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
21	2005025		Trim (top)		Appelez-nous	-
23	2209420S		Trim (bottom)		Appelez-nous	-
24	2005964		Trim (side)		Appelez-nous	-
26	2209027		Panel, Interior Door		Appelez-nous	-
28	2209163		Shelf Bin		Appelez-nous	-
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
34	2208909		Ice Chute		Appelez-nous	-
