Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2257401S Top Grille Assembly (stainless Steel) Appelez-nous -
2 2259320 Cover, Unit Appelez-nous -
3 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

4 2256466 Back Panel Special Order $ 327.22

5 2302974 Cover, Unit Front Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

7 2187429 Wire Assembly Rc/fc Light Switch Appelez-nous -
8 2220944 Panel, Decorative Insert (stainless Steel) Appelez-nous -
9 489348 Clamp Appelez-nous -
10 2221297 Enclosure, Connector Appelez-nous -
11 2215910 Grommet, Flexible Special Order $ 94.32


    View Diagram in Separate Window     Print Icon   Print Part List

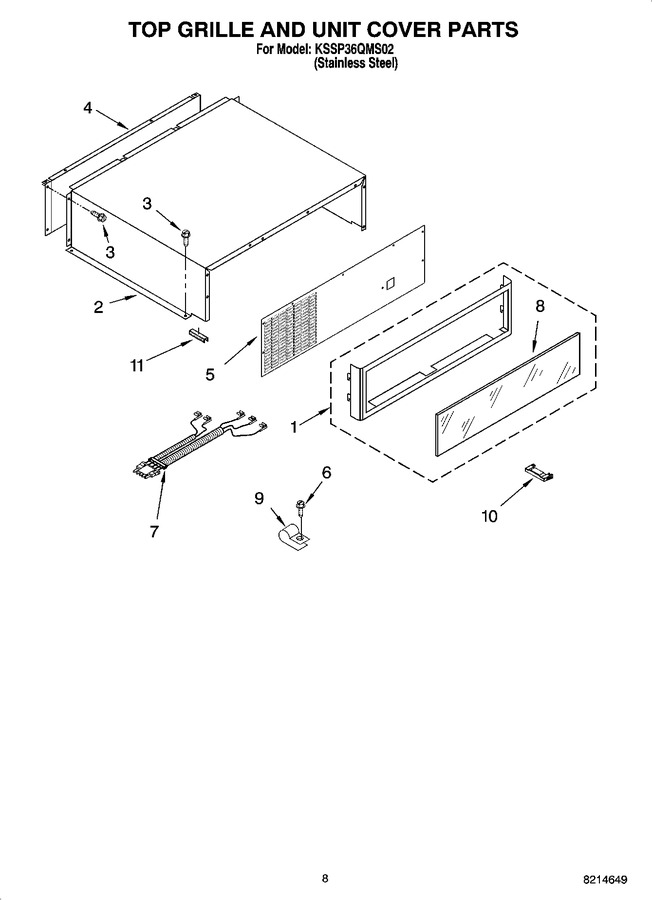

Diagram for KSSP36QMS02
