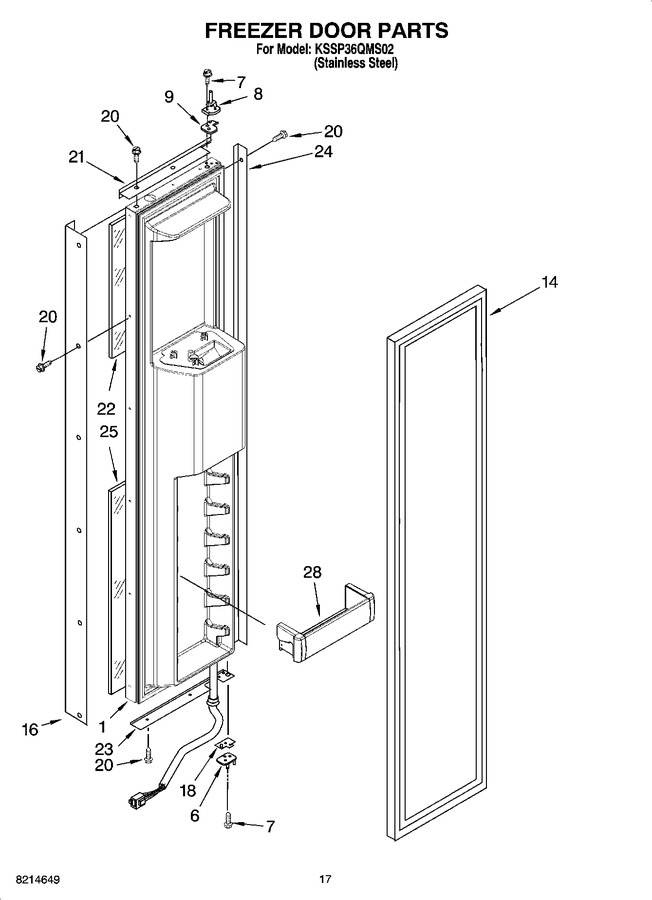

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252323B		Freezer Door Panel (includes Item 14) (black)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
16	2256472S		Handle, Door (stainless Steel)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005025		Trim (top) (stainless Steel)		Appelez-nous	-
22	2209355		Panel, Decorative (upper) (stainless Steel)		Appelez-nous	-
23	2215984S		Trim (bottom) (stainless Steel)		Appelez-nous	-
24	2005964		Trim (side) (stainless Steel)		Appelez-nous	-
25	2209352		Panel, Decorative (lower) (stainless Steel)		Appelez-nous	-
28	W10323601		Bin, Shelf   (Replaces: 2222775)				$ 92.19

    View Diagram in Separate Window       Print Part List
