SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Top Grille And Unit Cover


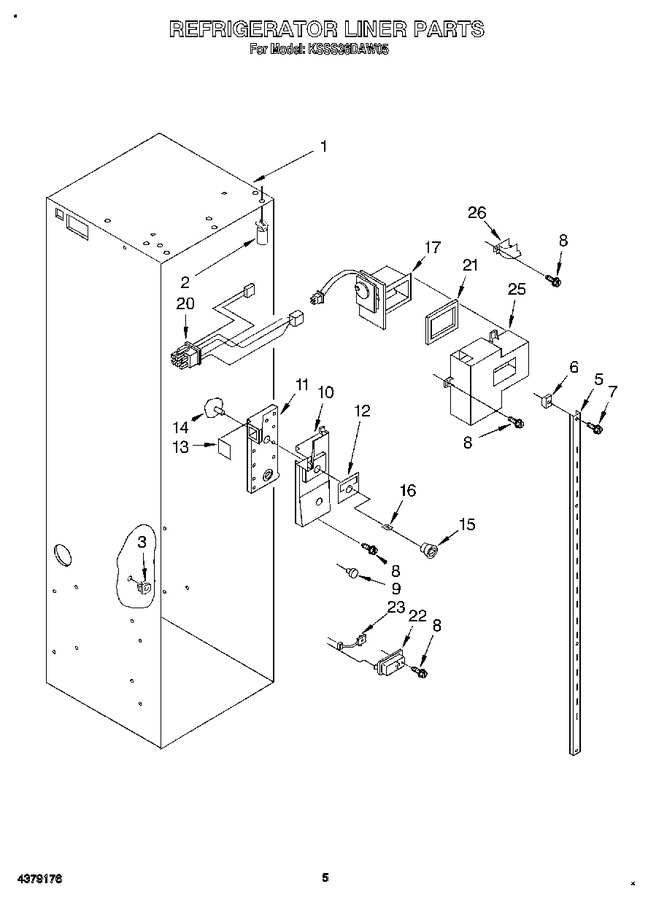

04 - Refrigerator Liner


05 - Freezer Liner


06 - Freezer Control Panel


07 - Freezer Shelf


08 - Refrigerator Control Panel


09 - Refrigerator Shelf


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker, Lit/optional


17 - Ice Container


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1112591		Spacer, Control Panel (3)		Appelez-nous	-
3	843436		Grommet, Screw (3)		Appelez-nous	-
5	2001117		Ladder, Shelf (2)		Appelez-nous	-
6	520965		Screw Support, Ladder (8)				$ 31.35
7	488357		Screw, 8 X 1-1/4 (8)		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	1112257		Hole Plug		Appelez-nous	-
10	2000740		Meat Pan, Air Duct Cover (also Order 12)		Appelez-nous	-
11	2000337		Meat Pan, Air Duct		Appelez-nous	-
12	2001302		Inlay, Control Meat Pan		Appelez-nous	-
13	2001326		Seal, Air Duct		Appelez-nous	-
14	1112218		Damper Control, Meat Pan				$ 8.51
15	2001735		Control Knob, Meat Pan		Appelez-nous	-
16	837444		Knob, Retainer		Appelez-nous	-
17	2000343		Air Baffle Assembly		Appelez-nous	-
20	2001073		Wiring Harness, Air Baffle		Appelez-nous	-
21	2001146		Seal		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	1116959		Thermistor				$ 50.88
25	2000736		Air Baffle Cover		Appelez-nous	-
26	2003577		Guard, Air Return   (Replaces: 2000527)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
