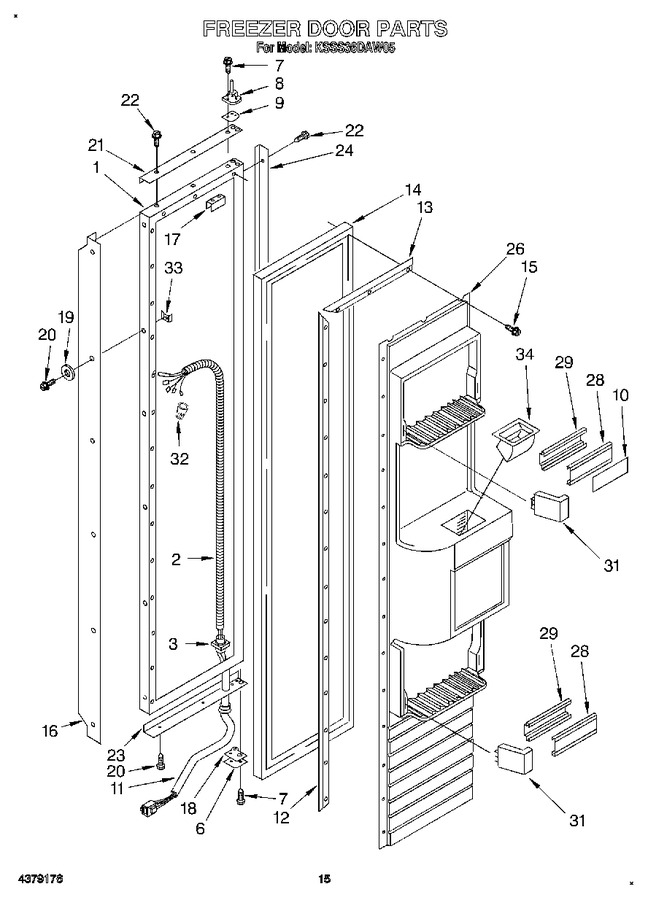

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001136 | Exterior Door Panel, Freezer (includes Insulation) |
|
- | |||||
| 2 | 1112997 | Tube, Wiring |
|
- | |||||
| 3 | 1112928 | Retainer, Tube |
|
- | |||||
| 6 | 2000720 | Hinge, Bottom |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 8 | 2000721 | Hinge, Top |
|
- | |||||
| 9 | 2001396 | Door Spacer |
|
- | |||||
| 10 | 2001031 | Overlay, Shelf |
|
- | |||||
| 11 | 2001323 | Wiring Harness, Freezer Door |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112538 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2000877 | Door Gasket, Magnetic |
|
- | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (34) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 16 | 2000389 | Handle, Door |
|
- | |||||
| 17 | 2000349 | Tap, Plate |
|
- | |||||
| 18 | 2001395 | Door, Spacer |
|
- | |||||
| 19 | 2001230 | Washer (6) |
|
$ 12.34 | |||||
| 20 | 2001208 | Screw |
|
- | |||||
| 21 | 2001406 | Trim (top) |
|
- | |||||
| 22 | 2001209 | Screw |
|
- | |||||
| 23 | 2001409 | Trim (bottom) |
|
- | |||||
| 24 | 2000390 | Trim (side) |
|
- | |||||
| 26 | 1113945 | Panel, Interior Door |
|
- | |||||
| 28 | 1112765 | Door Shelf, Outer Trim |
|
- | |||||
| 29 | 1112770 | Door Shelf, Inner Trim |
|
- | |||||
| 31 | 1112763 | Support, Trim Ends |
|
$ 32.70 | |||||
| 32 | 227991 | Wire Connector |
|
- | |||||
| 33 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 34 | 2000798 | Ice Chute |
|
- |
