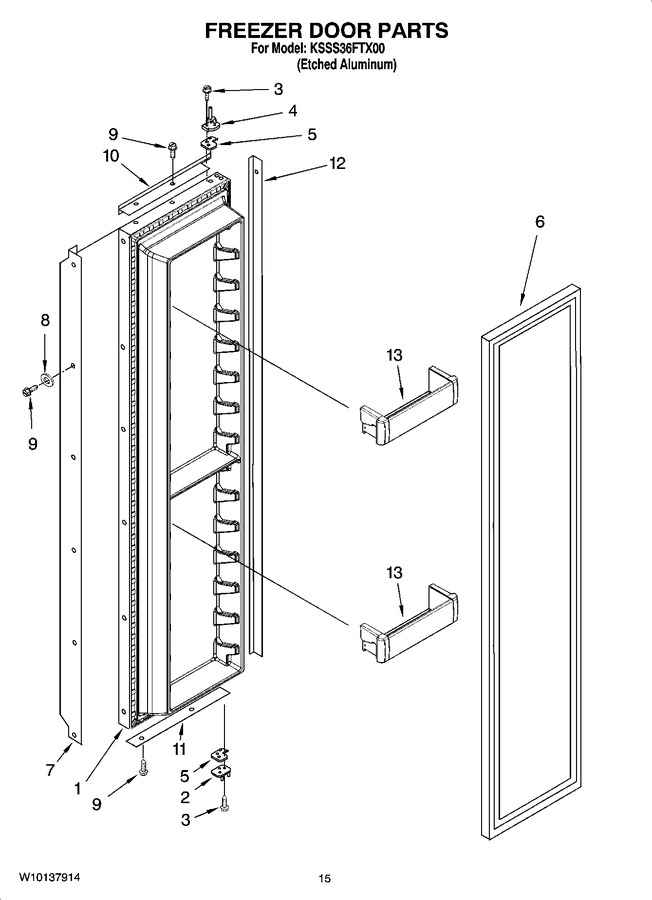

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2252326 | Freezer Door Panel (includes Insulation) |
|
- | |||||
| 2 | W11752085 | Hinge, Bottom (Replaces: 2302879) |
|
$ 63.07 | |||||
| 3 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 4 | W11724512 | Hinge, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 5 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 6 | W11624976 | Door Gasket, Magnetic (Replaces: 2222813) |
|
Immediately | $ 316.47 | ||||
| 7 | 2316844S | Handle, Door |
|
$ 225.63 | |||||
| 8 | 2001230 | Washer |
|
$ 12.34 | |||||
| 9 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 10 | 2005025 | Trim-door, Top |
|
- | |||||
| 11 | 2215984S | Trim-door, Bottom |
|
- | |||||
| 12 | 2005964 | Trim-door, Side |
|
- | |||||
| 13 | W10323601 | Bin, Door (3) (Replaces: 2222775) |
|
$ 92.19 |
