SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts

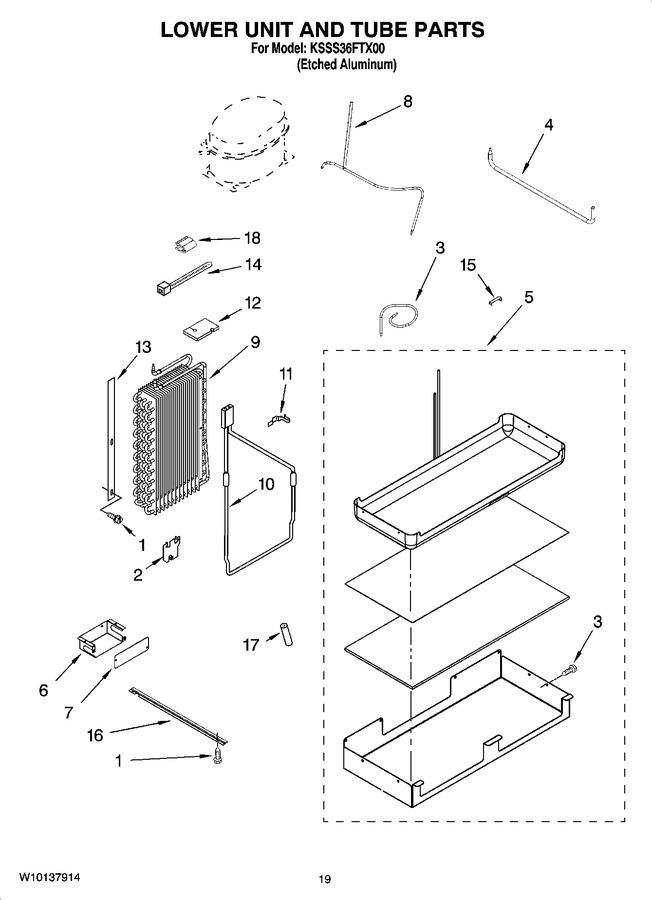

12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.72
2	2215508		Bracket		Appelez-nous	-
3	2309076		Suction Tube				$ 136.59
4	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 40.48
5	W11623101		Drain Pan Assembly   (Replaces: 2320615)			Immediately	$ 394.02
6	2316683		Cover, Wiring		Appelez-nous	-
7	2316684		Cover, Box		Appelez-nous	-
8	W10121370		Tube, Discharge		Appelez-nous	-
9	WP2306092		Evaporator   (Replaces: 2306092)			Immediately	$ 364.99
10	2306387		Heater, Defrost		Appelez-nous	-
11	1113048		Clamp, Heater (2)		Appelez-nous	-
12	2316794		Seal, Return Air		Appelez-nous	-
13	2220832		Gasket, Evaporator		Appelez-nous	-
14	4389107		Wire Tie		Appelez-nous	-
15	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
16	2320554		Support, Drain Pan		Appelez-nous	-
17	2215648		Damper, Heater				$ 13.21
18	9791833		Clip-thermistor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
