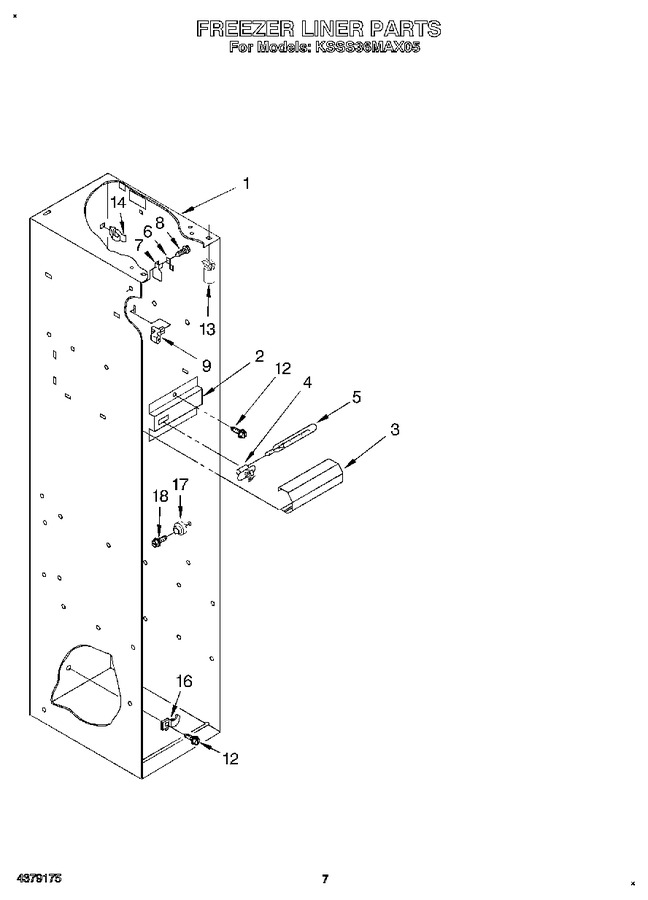

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1113649		Bracket, Light		Appelez-nous	-
3	1113650		Lens		Appelez-nous	-
4	1112613		Light, Socket		Appelez-nous	-
5	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
6	538533		Support Clip, Icemaker (2)		Appelez-nous	-
7	2000193		Grommet, Screw (2)		Appelez-nous	-
8	WP681414		Screw, 10-12 X 3/8 (2)   (Replaces: 488552)			Immediately	$ 8.47
12	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
13	1112591		Spacer, Control Panel (3)		Appelez-nous	-
14	2215823		Clip, Air Duct (4)   (Replaces: 842534)				$ 10.94
16	1112260		Support,evaporator		Appelez-nous	-
17	658944		Stud, Shelf (8)		Appelez-nous	-
18	487559		Screw, 8-15 X 1-1/4 (8)		Appelez-nous	-
