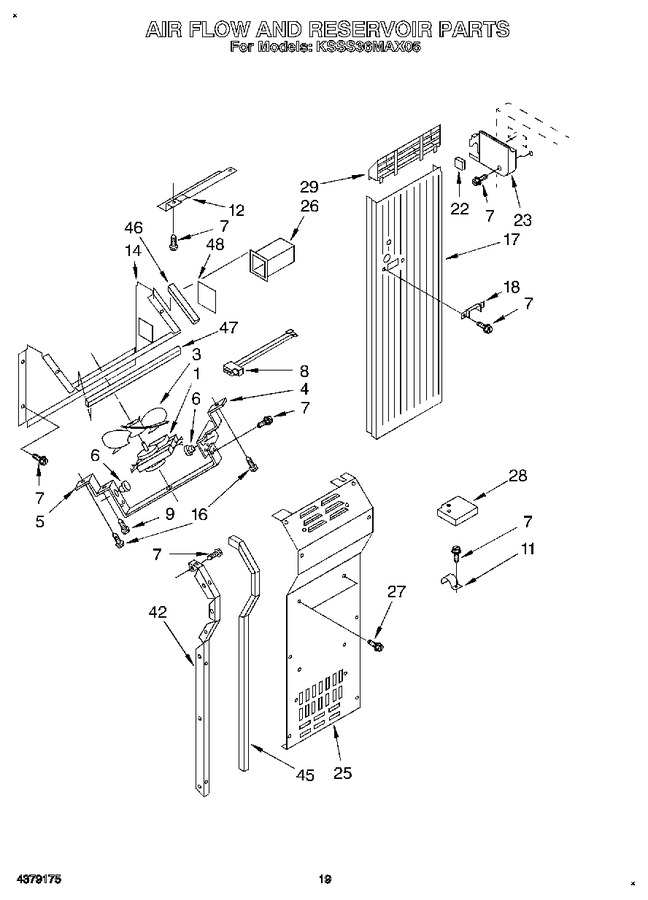

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4389155		Fan Motor   (Replaces: 2001086)			Immediately	$ 251.31
3	WP2169142		Fan Blade   (Replaces: 2154800)			Immediately	$ 43.41
4	548263		Bracket (double)		Appelez-nous	-
5	938224		Bracket (single)		Appelez-nous	-
6	548268		Grommet		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
8	2000618		Motor, Wiring		Appelez-nous	-
9	WP489128		Screw, Ground   (Replaces: 488500)				$ 11.40
11	489348		Clamp-nylon		Appelez-nous	-
11	WP488366		Clamp, Tube   (Replaces: 488366)				$ 11.92
12	2001256		Channel, Wiring		Appelez-nous	-
14	2000783		Scroll, Fan		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
17	2000747		Assembly, Air Duct		Appelez-nous	-
18	2000048		Air Deflector, Icemaker		Appelez-nous	-
22	1112869		Gasket, Air Baffle		Appelez-nous	-
23	1113942		Cover, Air Outlet		Appelez-nous	-
25	2000339		Cover, Evaporator		Appelez-nous	-
26	2000797		Connector, Meat Pan Duct		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
28	1112840		Baffle, Evaporator		Appelez-nous	-
29	1112851		Diffuser, Air Duct		Appelez-nous	-
42	2000686		Evaporator, Cover Rail (left Side)		Appelez-nous	-
42	2000685		Evaporator, Cover Rail (right Side)		Appelez-nous	-
45	2001337		Gasket (2) Evaporator Cover		Appelez-nous	-
46	2001079		Gasket (2)		Appelez-nous	-
47	2001080		Gasket		Appelez-nous	-
48	2001081		Gasket		Appelez-nous	-
